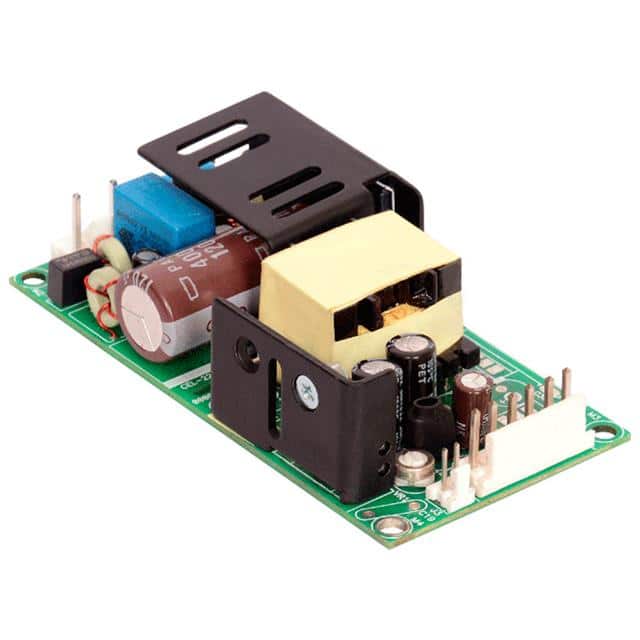

The EOS Power LFWLT40-1003 is an industrial 40 Watt (WLT) series AC/DC converter. It offers a 40W convection-cooled rating and a compact 4 x 2 x 1.2 inches form factor. This converter boasts high efficiency greater than 85% and accepts a universal AC input voltage range of 90-264 VAC.
Key electrical specifications include a maximum input current of 0.85A at 120 VAC and 0.45A at 230 VAC. It features low no-load power consumption, less than 0.3W for single output models. The unit provides a single output with adjustable voltage and protection features such as over-current, over-voltage, and short-circuit protection.
Designed for industrial applications, the LFWLT40-1003 operates within a temperature range of -20 to 70°C and has an MTBF of 1.87 million hours. It is compliant with IEC/EN/UL62368-1 standards and approved with metal enclosures/accessories. The open frame type with chassis mount is suitable for integration into various systems.
This series offers Class I & Class II options and a cover kit accessory is available. The dimensions are 101.6mm x 50.8mm x 28.5mm.
The output power is 40W.
The input voltage range is 90-264 VAC.
The efficiency is 85% typical.
The operating temperature range is -20°C to 70°C.
The dimensions are 101.6mm x 50.8mm x 28.5mm.
It meets IEC/EN/UL62368-1 standards.
