| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Relative Humidity | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

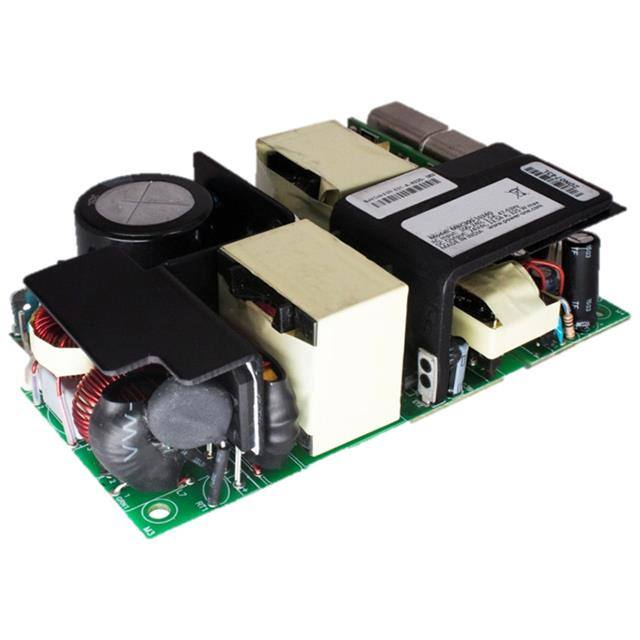

The EOS Power LFWLT300-1001 is a versatile open-frame AC/DC converter designed for industrial applications. It provides a robust 200W of power output, which can be boosted to 300W with forced airflow.
This converter accepts a wide range of input voltages from 90-264 VAC, making it suitable for global use. Key electrical specifications include a typical efficiency of 92% at 230 VAC, line regulation of +/-0.5%, and load regulation of +/-2%. It incorporates features such as Power Factor Correction (PFC), remote sense, and remote On/Off control, enhancing its utility in complex systems.
With dimensions of 5.00" L x 3.00" W x 1.50" H, the LFWLT300-1001 is designed for chassis mounting. It operates within a temperature range of -20°C to 70°C and meets safety standards including CE marking and compliance with IEC/EN/UL62368-1.
This model is ideal for ITE (Commercial) applications requiring a reliable and efficient power solution. Its open-frame construction and chassis mount type facilitate integration into various equipment designs.
90-264 VAC or 120-390 VDC universal.
Open frame, chassis mount.
-20°C to 70°C with derating.
200W under natural convection, 300W with 300 LFM forced air.
88% typical at 120 VAC, 92% typical at 230 VAC.
Over current (110-150%), over voltage (110-150%), short circuit (autorecovery), and over temperature (110°C primary heatsink, autorecovery).
1.77 million hours per Telcordia SR-332 issue 3.
