| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

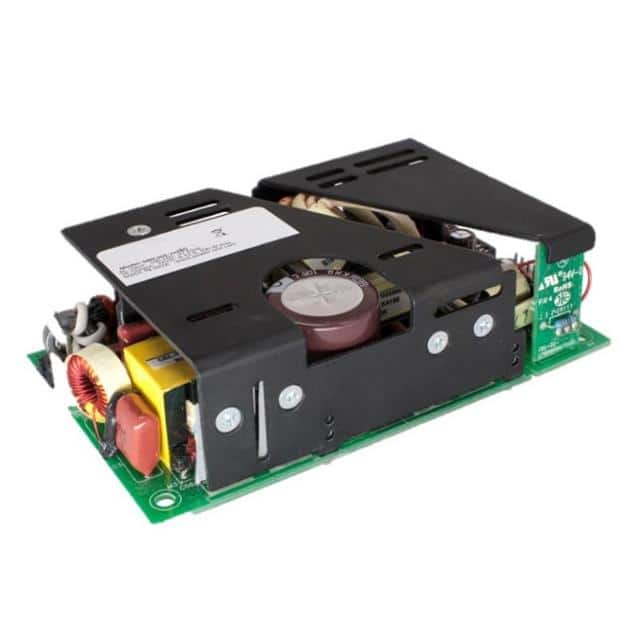

The EOS Power LFWLT200-1302 is a 160W AC DC converter designed for industrial applications. It operates with a universal input voltage range of 90-264 VAC and features a chassis mount for easy integration.
Key electrical specifications include an efficiency of up to 88%, a power factor of 0.99 at 120 VAC, and a hold-up time greater than 10 ms. The converter offers adjustable output voltage with +/-3.0% adjustability and features over-current, over-voltage, and short-circuit protection.
This model supports forced-air cooling to achieve up to 200W of output power. It includes features such as PFC, remote sense, remote on/off, and a 5V standby output. The operating temperature range is -20°C to 70°C, with startup guaranteed from -20°C to 0°C.
The dimensions are 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm). It is approved by CB, CE, NEMKO, and UL, making it suitable for ITE (Commercial) applications.
-20°C to 70°C with derating above 50°C.
90-264 VAC universal input.
Enclosed chassis mount, dimensions 127.0 x 76.2 x 38.1 mm.
160W under natural convection, up to 200W with 300 LFM forced air.
Over current protection at 110% of rating, over voltage protection from 110% to 150%, and short circuit protection with autorecovery.
Minimum 4000 VDC between input and output.
