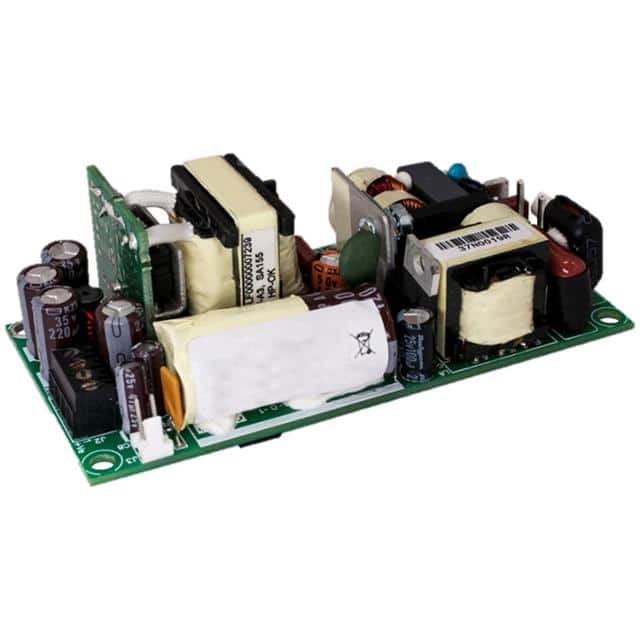

The EOS Power LFWLT150-1301 is an AC/DC converter designed for industrial applications. It provides a 12V output with a convection power rating of 100W, which can be boosted to 150W with forced air cooling.
Key electrical specifications include a universal input voltage range of 90-264 VAC or 120-390 VDC, an efficiency of 86% typical at 230 VAC, and a power factor of 0.95 at 230 VAC. The converter offers line regulation of +/-0.5% and load regulation of +/-2.0%. It includes protections such as over-current, over-voltage, and short-circuit with autorecovery.
This unit is designed for chassis mounting and has dimensions of 101.6mm x 50.8mm x 33.6mm. It operates within a temperature range of -20°C to 70°C with derating. The LFWLT150-1301 is compliant with IEC/EN/UL62368-1 standards and carries approvals from CB, CE, cUL, NEMKO, and UL, making it suitable for ITE (Commercial) applications.
The output voltage is 12V.
The convection power rating is 100W.
The efficiency is 86% typical at 230 VAC.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 101.6mm x 50.8mm x 33.6mm.
