| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

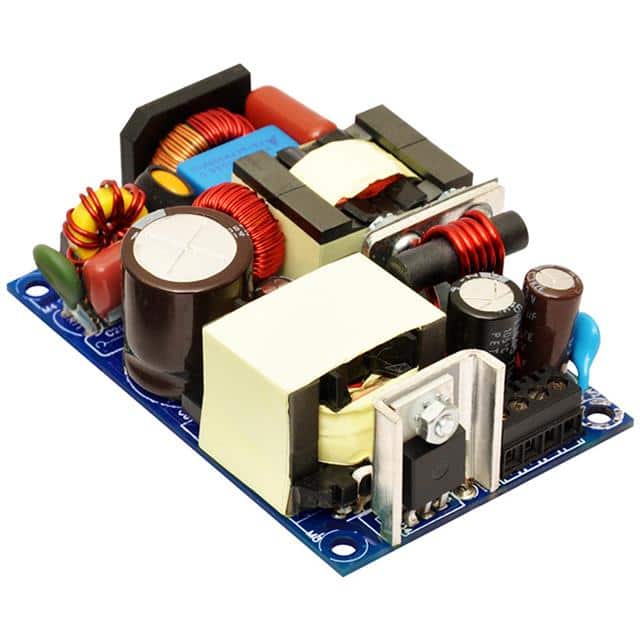

The EOS Power LFWLP75-1003 is a 75W AC/DC converter designed for industrial and automation applications. It offers a universal input voltage range of 85-264 VAC and a fixed 24V output with 3.12A current capability. This open frame power supply boasts high efficiency, reaching up to 93% at specific loads, and features a power factor exceeding 0.95 with Active PFC.
Key features include adjustable output voltage (+/-3%), line and load regulation of +/-0.5% and +/-1% respectively, and a transient response time of less than 5ms. The operating temperature range is -40°C to 70°C, with startup guaranteed at lower temperatures. It also includes over-current, over-voltage, and short-circuit protection mechanisms.
With a compact form factor of 3 x 2 x 1 inches, it is suitable for chassis mounting. The LFWLP75-1003 meets various safety and compliance standards including IEC/UL62368-1 and EN 62368-1, with approvals from CE, cUL, NEMKO, and UL. Its MTBF is rated at 2.00 million hours according to Telcordia-SR332-issue 3.
The LFWLP75-1003 provides a nominal output voltage of 24V with a maximum output current of 3.12A, delivering 75W of power.
The LFWLP75-1003 features a universal input voltage range of 85-264 VAC and 390 VDC.
The LFWLP75-1003 can operate in temperatures ranging from -40°C to 70°C.
The LFWLP75-1003 has a form factor of 3 x 2 x 1 inches.
The LFWLP75-1003 is compliant with IEC/UL62368-1:2018 and EN 62368-1:2014 +A11:2017.
