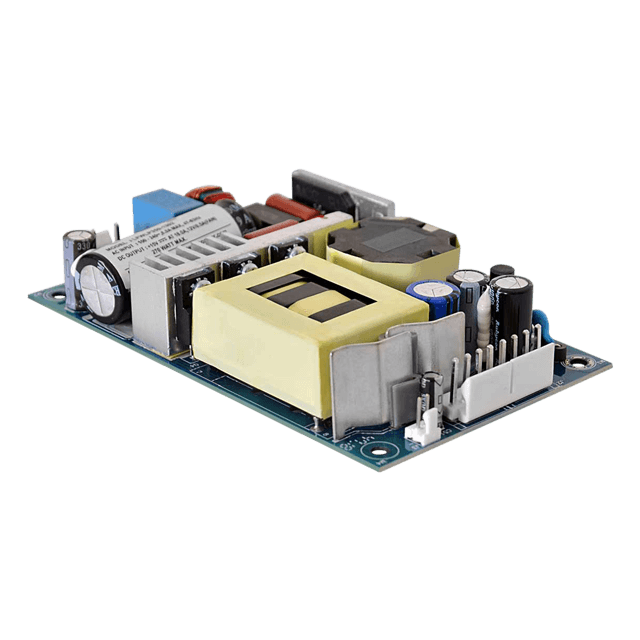

The LFWLP350-1301 from EOS Power is a chassis mount AC/DC converter designed for industrial applications. It provides a 12VDC output voltage and can deliver up to 350W of power when utilizing 375 LFM forced air cooling, or up to 200W via natural convection.
This converter features a universal input voltage range of 90-264VAC and operates with high efficiency, up to 94%. Key electrical specifications include line regulation of +/-0.5%, load regulation of +/-1%, and over-voltage protection. It also includes features like remote ON/OFF control and a thermal shut-down feature.
The unit is built in an open frame package with dimensions of 5 x 3 x 1 inches, making it suitable for chassis mounting. The operating temperature range is -40°C to 70°C, ensuring reliability in demanding environments. Compliance includes IEC/EN/UL62368-1 and IEC/EN61558 standards.
The input voltage range is 90-264 VAC universal, with derating below 100V AC.
The nominal output voltage is 12 VDC.
Maximum output power is 200W with natural convection cooling and 350W with 375 LFM forced air cooling.
The operating temperature range is -40°C to 70°C with derating.
Typical efficiency is 92% for the 12V output model, and up to 94% for 48V and 58V output models.
The package is an open-frame chassis mount with dimensions 5 x 3 x 1 inches (127 x 76.2 x 25.4 mm).
It includes over-current protection (>110% rated), over-voltage protection (110-140%), and short-circuit protection, all with hiccup mode and auto recovery.
