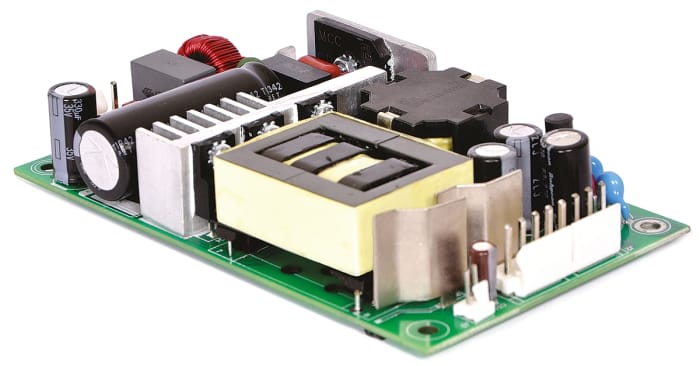

The EOS Power LFWLP350-1003 is an open-frame, chassis-mount AC/DC converter designed for industrial and automation applications. It delivers a 24V output with a maximum current of 13.54A, providing up to 350W with forced air cooling or 200W with convection cooling.
This power supply offers a universal input voltage range of 90-264 VAC or 390 VDC, with efficiencies up to 94%. Key electrical specifications include line and load regulation of +/-0.5% and +/-1% respectively, and a hold-up time greater than 8 ms. It incorporates protections such as over-current, over-voltage, and short-circuit protection.
The compact form factor measures 5 x 3 x 1 inches, making it suitable for space-constrained designs. Operating temperature ranges from -40°C to 70°C. The unit is certified to standards including IEC/EN/UL62368-1 and IEC/EN61558, with approvals from NEMKO, cUL, CSA, and UL.
90-264 VAC / 390 VDC.
24V.
350W with forced air cooling (375 LFM) or 200W with natural convection.
-40°C to 70°C with derating.
Open frame, chassis mount, dimensions 5 x 3 x 1 inches (127 x 76.2 x 38.1mm).
Over current (>110%), over voltage (110-140%), and short circuit protection, all with hiccup mode and auto recovery.
IEC/EN/UL62368-1:2018, IEC/EN61558, EN60950-1, and has approvals from NEMKO, cUL, CSA, and UL.
