| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Country of Origin | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Weight | |
| Width |

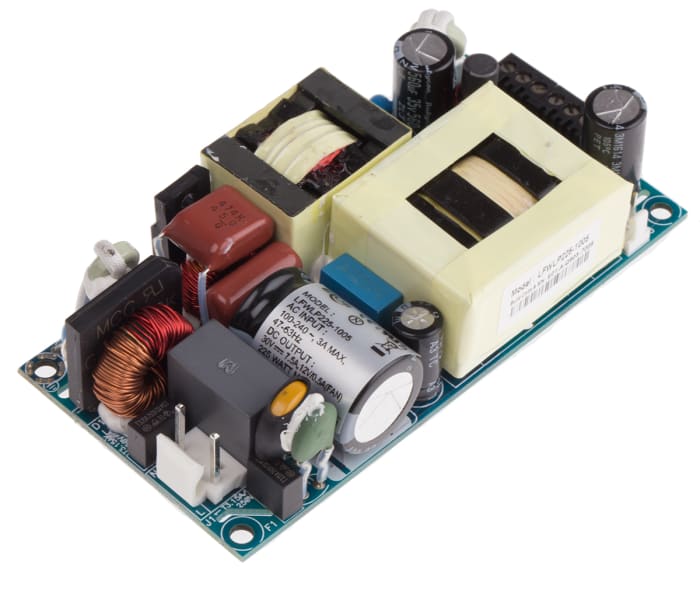

The EOS Power LFWLP225-1005 is an open frame, chassis mount switching power supply designed for industrial and automation applications. It delivers a maximum output voltage of 30V dc and a maximum output current of 7.5A, with a power rating of 225W under forced air cooling and 112.5W under convection cooling.
This power supply features a universal input voltage range from 85V to 390V dc, making it suitable for global use. It boasts high efficiency, up to 94%, and operates within a wide temperature range of -40°C to 70°C. Additional features include adjustable output, Power Factor Correction (PFC), a 12V fan output, and thermal shut-down protection.
The compact dimensions of 101.6mm x 50.8mm x 25.4mm (4" x 2" x 1") allow for easy integration into various systems. It meets standards such as EN60950-1, IEC60950-1, UL60950, and CSA C22.2 No.60950-1, with approvals from CB, CCC, CE, cUL, NEMKO, and UL.
The maximum output voltage is 30V dc.
The maximum output current is 7.5A.
It provides 225W with forced air cooling and 112.5W with convection cooling.
The input voltage range is from 85V dc to 390V dc.
The operating temperature range is -40°C to 70°C.
The dimensions are 101.6mm x 50.8mm x 25.4mm (4.00" x 2.00" x 1.00").
It complies with UL, NEMKO, cUL, CSA, EN60950-1, IEC60950-1 (ed.2), UL60950 (ed.2), CSA C22.2 No.60950-1 (ed.2), and Class 1 SELV.
