| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

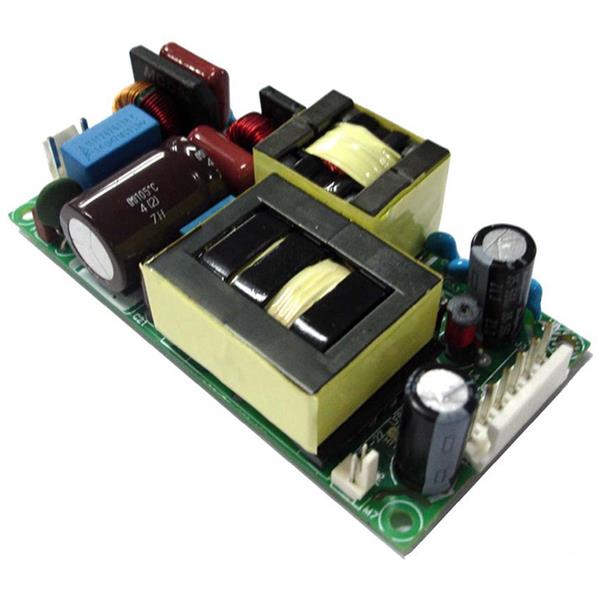

The EOS Power LFWLP225-1002 is an AC-DC power module designed for industrial applications. It features an open frame construction and chassis mount for easy integration.
This power module operates with an input voltage range of 85 VAC to 264 VAC and provides a stable 15 VDC output at 8 A, delivering up to 225W of power. It includes features such as adjustable output, power factor correction (PFC), and universal input.
The LFWLP225-1002 is built to withstand demanding environments, with an operating temperature range from -40°C to +70°C. It meets various safety and compliance standards, including CB, CCC, CE, cUL, NEMKO, and UL, and adheres to the IEC 62368-1 standard.
85 to 264 VAC or 390 VDC.
15 VDC at 8 A.
-40°C to +70°C with derating.
Open frame, chassis mount.
92% typical.
CB, CCC, CE, cUL, NEMKO, UL certified to IEC 62368-1.
Adjustable output, PFC, and universal input.
