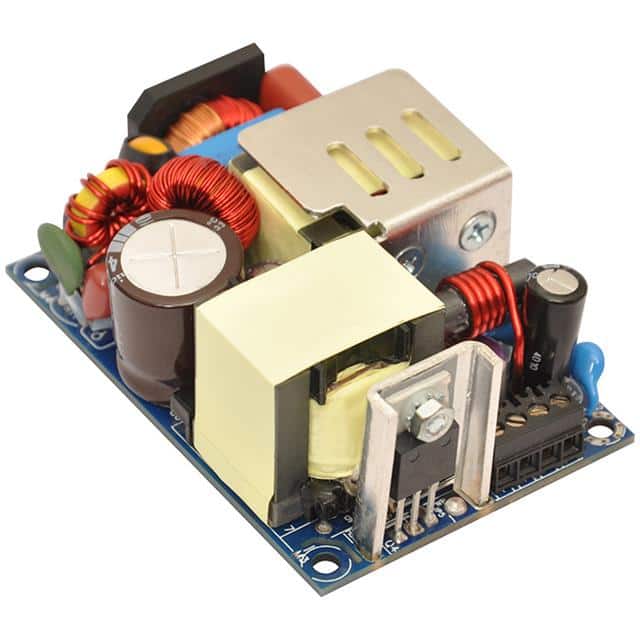

The EOS Power LFWLP120-1003 is an open-frame AC/DC converter designed for industrial and commercial applications. It provides a 100W output power with a 24V nominal output voltage and a maximum output current of 4.16A. The unit accepts a universal input voltage range of 85-264 VAC or 390 VDC and operates at a frequency of 47-63 Hz.
Key electrical specifications include a typical efficiency of 91% (93% for higher voltage outputs), power factor exceeding 0.95 with active PFC, and a hold-up time greater than 10 ms. It offers adjustable output voltage with +/-3% regulation and load regulation of +/-1%. Protection features include over-current, over-voltage (latch type), and short-circuit (hiccup mode) protection.
This converter operates within a temperature range of -40°C to 70°C and has a storage temperature range of -40°C to 85°C. It is designed for chassis mounting and has dimensions of 3.00" L x 2.00" W x 1.18" H. The MTBF is rated at over 3.00 million hours according to Telcordia-SR332-issue 3.
Compliance includes IEC/UL62368-1:2018 and EN 62368-1:2014 +A11:2017 standards, along with approvals from CB, CE, cUL, NEMKO, and UL. It is RoHS3 compliant and REACH unaffected.
The LFWLP120-1003 has a nominal output voltage of 24V.
The maximum output current is 4.16A.
The input voltage range is 85-264 VAC or 390 VDC.
The typical efficiency is 91% for 24V/30V outputs and up to 93% for 48V/58V outputs. The manufacturer page also lists 94% efficiency.
The operating temperature range is -40°C to 70°C.
The LFWLP120-1003 is listed as RoHS3 Compliant.
