LFP300F-24-J1Y
Cosel
The Cosel LFP300F-24-J1Y is an Open Frame AC DC Converter designed for chassis mounting. It offers 88% efficiency and a current rating of 12.5A.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage |

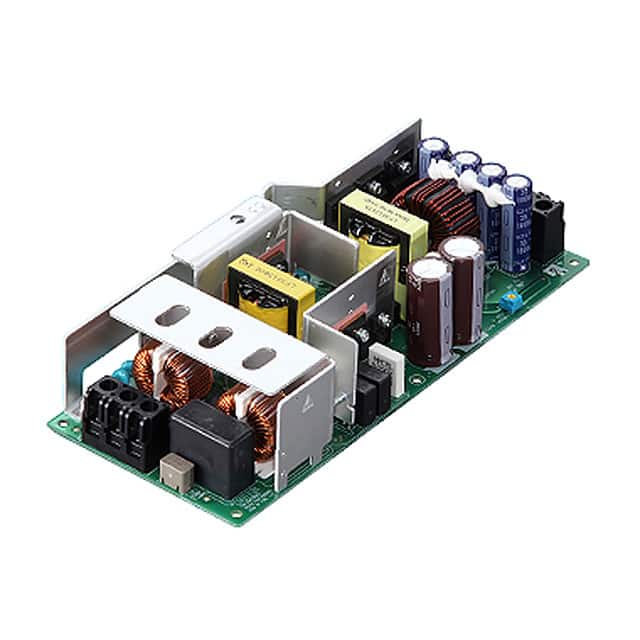

The Cosel LFP300F-24-TY is an AC/DC converter designed for commercial ITE applications. It delivers a single 24V output with a rated current of 12.5A, providing up to 300W of continuous power. The converter achieves 88% efficiency, reducing thermal losses and enabling compact system designs.
Electrically, the unit provides one output and operates with an input isolation voltage of 3kV. It is built in an open frame configuration with chassis mount form factor, allowing direct integration into enclosures or rack systems. Mechanical dimensions are 222.0mm length, 95.0mm width, and 52.6mm height.
The ambient operating temperature range spans -10°C to 70°C, covering typical indoor commercial environments. Safety approvals include CE, cURus, and TUV, confirming compliance with relevant standards for ITE equipment. The converter is intended for use in commercial power systems such as networking, telecommunications, and industrial control equipment.
-10°C to 70°C.
88%
Chassis Mount
Open Frame
ITE (Commercial)
222.0mm x 95.0mm x 52.6mm
CE, cURus, TUV
