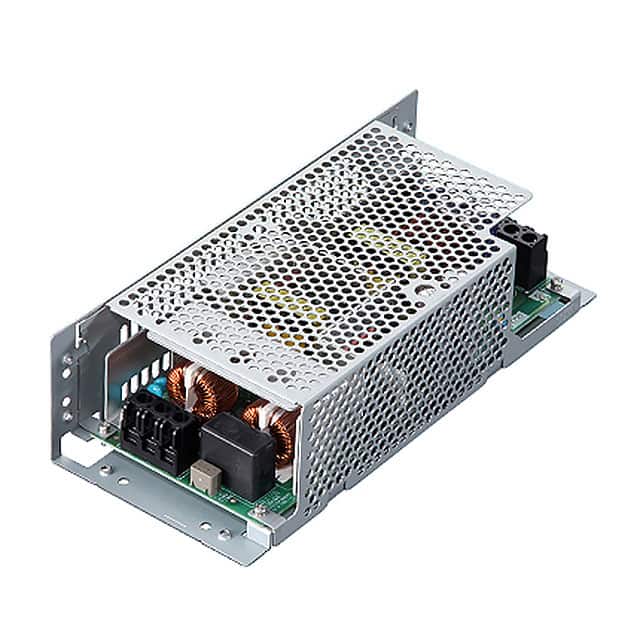

LFP300F-24-SNTY The Cosel LFP300F-24-SNTY is an enclosed AC/DC converter with a 24V output and 12.5A current. It features an 88% efficiency and chassis mount type.
Mfr Part #:

LFP300F-24-SNTY

Mfr Name: Cosel
Cosel
The Cosel LFP300F-24-SNTY is an enclosed AC/DC converter with a 24V output and 12.5A current. It features an 88% efficiency and chassis mount type.
Stock on Request

LFP300F-24-SNTY Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Type
Voltage
Width
View Similar Products (0)

LFP300F-24-SNTY Description

Short technical summary and product information.

The Cosel LFP300F-24-SNTY is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It provides a stable 24V output with a maximum current of 12.5A and boasts an efficiency rating of 88%.



This converter features a chassis mount design for easy integration into systems. Its dimensions are 222.0mm in length, 95.0mm in width, and 52.6mm in height. The operating temperature range is from -10°C to 70°C.



Key specifications include a voltage rating of 3 kV and it is approved by CE, cURus, and TUV. The LFP300F-24-SNTY has a single output and is RoHS3 compliant.

LFP300F-24-SNTY Quick Information

Product Type: AC DC Converter
Canonical Name: Cosel LFP300F-24-SNTY AC/DC Converter
Subcategory: AC DC Converters

LFP300F-24-SNTY Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LFP300F-24-SNTY Features

  • Enclosed AC/DC converter with 24V output.
  • 12.5A maximum current rating.
  • High efficiency of 88%.
  • Chassis mount for easy integration.
  • RoHS3 compliant for environmental standards.

LFP300F-24-SNTY Applications

  • Used in commercial ITE power systems.
  • Suitable for enclosed chassis mount installations.
  • Provides 24V single output conversion.
  • Operates in -10°C to 70°C environments.

LFP300F-24-SNTY FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage of the LFP300F-24-SNTY?

The output voltage is 24V.

What is the maximum current for the LFP300F-24-SNTY?

The maximum current is 12.5A.

What is the efficiency of the Cosel LFP300F-24-SNTY?

The efficiency is 88%.

How is the LFP300F-24-SNTY mounted?

It is designed for chassis mounting.

What is the operating temperature range?

The operating temperature range is -10°C to 70°C.
