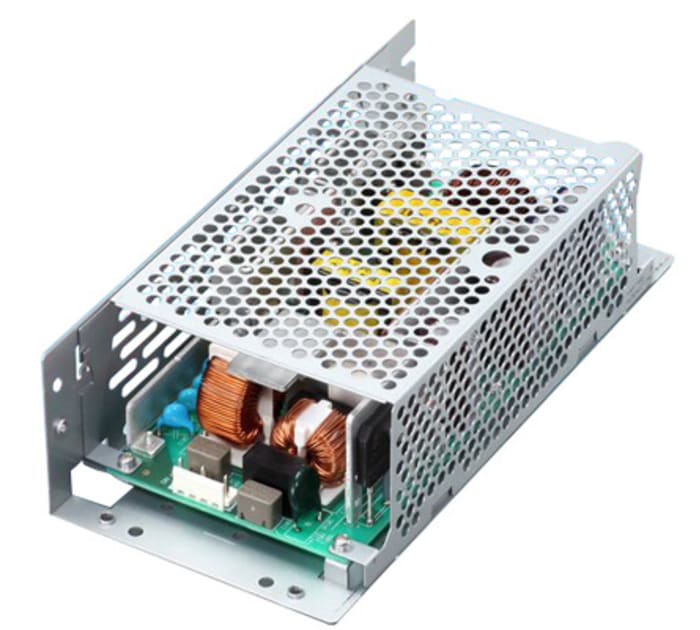

The Cosel LFP240F-36-SNY is a high-reliability, enclosed AC/DC converter designed for various applications. It delivers a stable 36V dc output with a maximum current of 6.7A, providing a total power of 302W. The unit accepts a wide input voltage range from 85V ac to 264V ac, ensuring versatility in different power environments.
With an efficiency of 89%, this converter minimizes energy loss. It features a single output and is designed for chassis mounting, making it suitable for integration into various systems. The operating temperature range is from -10°C to 70°C, offering robust performance under different thermal conditions.
Key features include built-in inrush current, overcurrent, and overvoltage protection, enhancing system safety and reliability. The LFP240F series is known for its compact PCB construction and harmonic attenuator compliant with IEC61000-3-2 CLASS A.
This converter is suitable for ITE (Commercial) applications and carries approvals from CE, cURus, and TUV. It is RoHS3 compliant and has an MSL rating of 1.
The maximum output voltage is 36V dc.
The output current is 6.7A.
The power rating is 302W.
The input voltage range is 85V ac to 264V ac.
The efficiency is 89%.
The operating temperature range is -10°C to 70°C.
It is designed for chassis mounting.
