| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Tape & Reel | |
| Type | |
| Voltage |

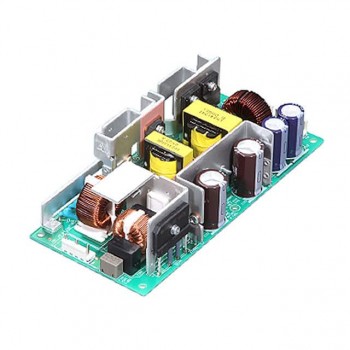

The Cosel LFP240F-24-RY is an AC/DC converter with an open frame design, suitable for ITE (Commercial) applications. It operates with an input voltage range of 85 to 264 VAC and delivers a stable 24V output at a maximum current of 10A.
Key electrical specifications include an isolation voltage of 3 kV and an efficiency rating of 88.5%. The operating temperature range is from -10°C to 70°C, making it suitable for various environmental conditions. The converter has a single output and is designed for chassis mounting.
With dimensions of 180.1mm x 84.1mm x 46.0mm, this converter is designed for integration into systems requiring reliable power conversion. It holds approvals from CE, cURus, and TUV, indicating compliance with relevant safety standards.
The output voltage is 24V.
The maximum output current is 10A.
The input voltage range is 85 to 264 VAC.
The efficiency is 88.5%.
The operating temperature range is -10°C to 70°C.
It is a chassis mount type.
The dimensions are 180.1mm x 84.1mm x 46.0mm.
