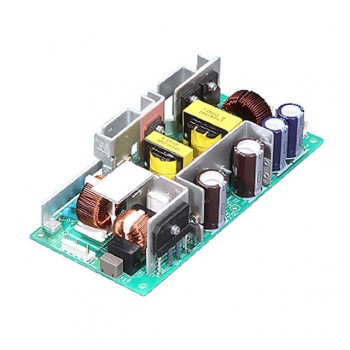

LFP240F-24-J1RY The Cosel LFP240F-24-J1RY is an open frame AC/DC converter providing a 24V output at up to 10A. It features an efficiency of 88.5% and is designed for ITE commercial applications.
Mfr Part #:

LFP240F-24-J1RY

Mfr Name: Cosel
Cosel
The Cosel LFP240F-24-J1RY is an open frame AC/DC converter providing a 24V output at up to 10A. It features an efficiency of 88.5% and is designed for ITE commercial applications.
Stock on Request

LFP240F-24-J1RY Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Type
Voltage
Width
View Similar Products (0)

LFP240F-24-J1RY Description

Short technical summary and product information.

The Cosel LFP240F-24-J1RY is an AC/DC converter with an open frame design, suitable for chassis mounting. It operates with an input voltage range of 85 to 264 VAC and delivers a stable 24V output at a maximum current of 10A.



This converter boasts an efficiency of 88.5% and provides 3 kV of isolation voltage. Its operating temperature range is -10°C to 70°C, making it suitable for various environmental conditions. The dimensions are 180.1mm x 84.1mm x 46.0mm.



Designed for ITE (Commercial) applications, the LFP240F-24-J1RY series offers reliable power conversion. It is compliant with CE, cURus, and TUV approval agencies.

LFP240F-24-J1RY Quick Information

Product Type: AC/DC Converter
Series: LFP (240W)
Canonical Name: Cosel LFP240F-24-J1RY AC/DC Converter
Subcategory: Open Frame

LFP240F-24-J1RY Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LFP240F-24-J1RY Features

  • 24V output voltage at 10A maximum current.
  • 88.5% efficiency for power conversion.
  • Open frame design for chassis mounting.
  • Suitable for ITE commercial applications.
  • Wide input voltage range of 85-264 VAC.

LFP240F-24-J1RY Applications

  • Used in commercial ITE equipment power supplies
  • Suitable for industrial control system applications
  • Ideal for telecom infrastructure power modules
  • Works in test and measurement instrumentation
  • Applied in panel mount power distribution systems

LFP240F-24-J1RY FAQs

5 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the LFP240F-24-J1RY?

85~264 VAC.

What output voltage and current does it provide?

24V at 10A.

What is the operating temperature range?

-10°C to 70°C.

What is the isolation voltage rating?

3 kV.

What mounting type does this converter use?

Chassis mount.
