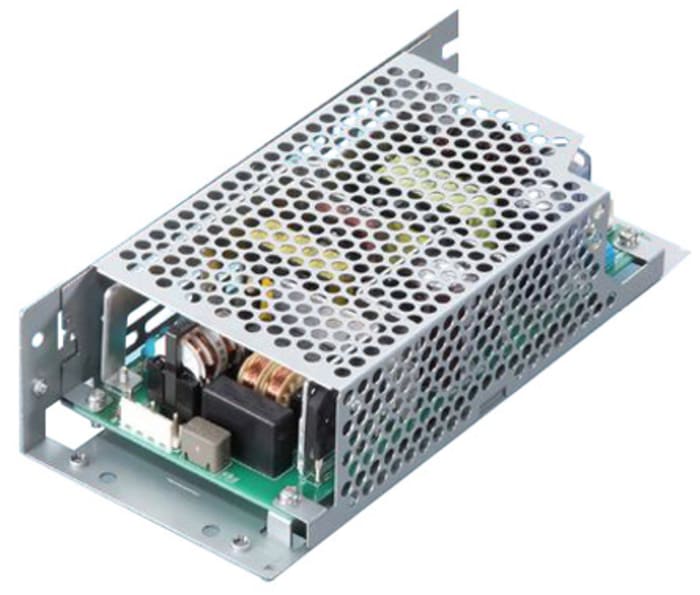

The Cosel LFP150F-24-SNY is a high-reliability, closed-frame AC/DC switching power supply designed for various applications. It delivers a stable 24V dc output with a maximum current of 6.3A, providing a total power of 151W. The unit accepts a wide input voltage range from 85V ac to 264V ac, making it suitable for global use.
Key electrical specifications include an efficiency of 88% and built-in protection features such as inrush current, overcurrent, and overvoltage protection. The operating temperature range is -10°C to 70°C. This power supply is designed for chassis mounting, offering a compact solution with dimensions of 160.0mm in length, 74.9mm in width, and 36.6mm in height.
Compliance includes CE, cURus, and TUV approvals, along with harmonic attenuation that complies with IEC61000-3-2 CLASS A. The LFP150F series is known for its reliability, though care should be taken to avoid PCB stress like twisting or bending.
This power supply is suitable for ITE (Commercial) applications and offers a 5-year warranty.
The Cosel LFP150F-24-SNY has an output voltage of 24V dc.
The maximum output current for the LFP150F-24-SNY is 6.3A.
This AC/DC converter has a power rating of 151W.
The input voltage range is 85V ac to 264V ac.
The efficiency of this power supply is 88%.
The operating temperature range is -10°C to 70°C.
This power supply is designed for chassis mounting.
