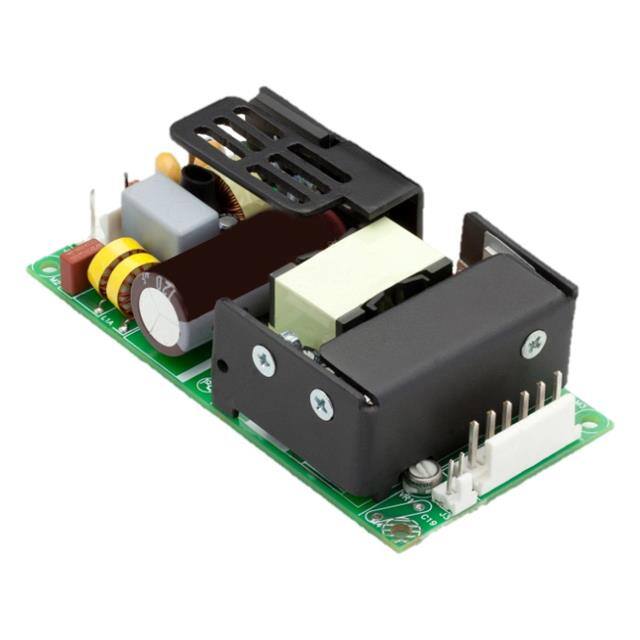

The EOS Power LFMWLT60-1003 is an open-frame AC/DC converter designed for medical applications. It provides a 24V output voltage and can deliver up to 65W of power.
This converter operates with a universal AC input range of 90-264 VAC and offers high efficiency of 85% typical. Key electrical specifications include a low leakage current of less than 250 µA and approvals from agencies such as CE, cUL, Nemko, and UL.
The unit is designed for chassis mounting and operates within a temperature range of -20°C to 70°C with derating. It features adjustable output and universal input capabilities, making it suitable for various power supply needs in medical equipment.
The AC input voltage range is 90-264 VAC universal.
The single output provides 24V at 2.7A, with a maximum power of 65W.
The operating temperature range is -20°C to 70°C with derating.
It includes over current protection (130% typical), over voltage protection (130% typical for V1), and short circuit protection with autorecovery.
Isolation is 4000 VAC input-to-output (2MOPP), 1500 VAC input-to-earth (1MOPP), and 500 VAC output-to-earth (1MOPP).
It is approved by CE, cUL, Nemko, and UL.
It is chassis mount with an open frame package.
