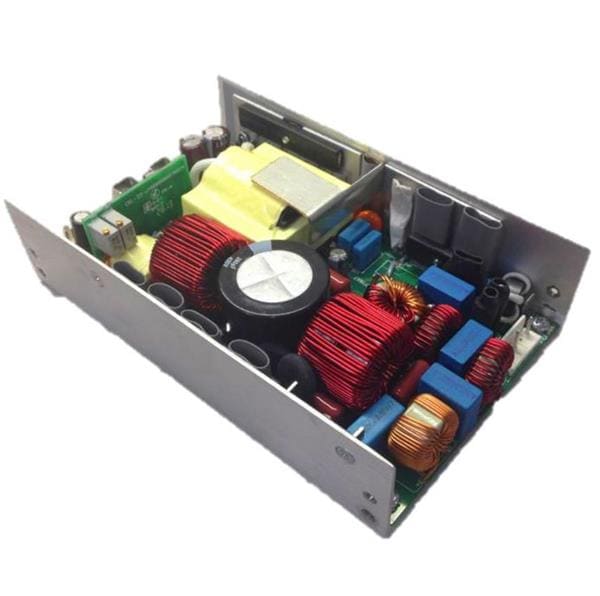

The EOS Power LFMWLT450-1005-I-S is an AC-DC power module with a 450W output power rating, designed for demanding applications. It provides a stable 30VDC output at 10A, suitable for various electronic systems.
This power module features a wide input voltage range of 90 VAC to 264 VAC and operates at input frequencies between 47 Hz and 63 Hz. It is designed for chassis mounting and has an open frame construction. Key electrical specifications include an isolation voltage of 5.94 kVDC and a regulated load output.
Designed with features such as adjustable output, Power Factor Correction (PFC), remote on/off, remote sense, and a standby output, this module offers flexibility in system integration. It operates within a temperature range of -40°C to 70°C with derating. The module is approved by CE, cUL, Nemko, and UL, making it suitable for medical industry applications.
Compliance includes RoHS3, MSL 1, and REACH Unaffected status. The dimensions are 200mm in length, 101.6mm in width, and 42.2mm in height.
The output voltage is 30 VDC and the output current is 10 A.
The input voltage range is 90 VAC to 264 VAC.
The operating temperature range is -40°C to 70°C with derating.
It is approved to CE, cUL, Nemko, and UL standards.
The efficiency is 90%.
It is a chassis mount, open-frame design.
