| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

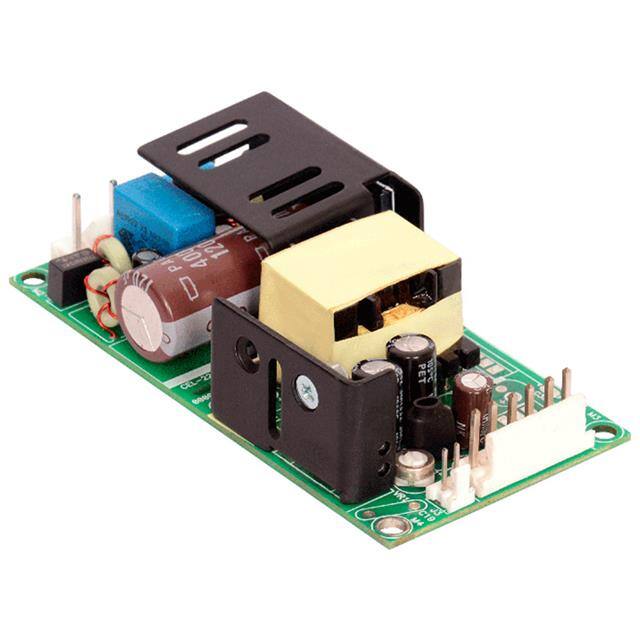

The EOS Power LFMWLT40-1000 is an open-frame AC/DC converter with a power rating of 40W. It is designed for medical applications and offers a universal input voltage range of 90-264 VAC.
Key electrical specifications include a nominal output voltage of 5.1V and a maximum output current of 8.0A. The converter boasts an efficiency of 85% typical and features like adjustable output and low leakage current (<250 µA at 230 VAC). It operates within a temperature range of -20°C to 70°C and has an MTBF of 1.87 million hours.
This chassis-mount converter has dimensions of 4.00" L x 2.00" W x 1.12" H. It meets several safety and EMC standards, including IEC60601-1-2, EN55022-B, and FCC Part15 Level B, making it suitable for medical equipment.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The unit is approved by CE, cUL, Nemko, and UL.
The LFMWLT40-1000 provides a single output of 5.1V.
The input voltage range is 90-264 VAC.
The operating temperature range is -20°C to 70°C with derating.
It has Nemko, UL, and CSA approvals to IEC60601 and meets IEC60601-1-2 (4th Edition).
The typical efficiency is 85% at both 120 VAC and 230 VAC.
The dimensions are 4.00 inches long by 2.00 inches wide by 1.12 inches high (101.6mm x 50.8mm x 28.5mm).
Yes, it has short-term short circuit protection with auto-recovery.
