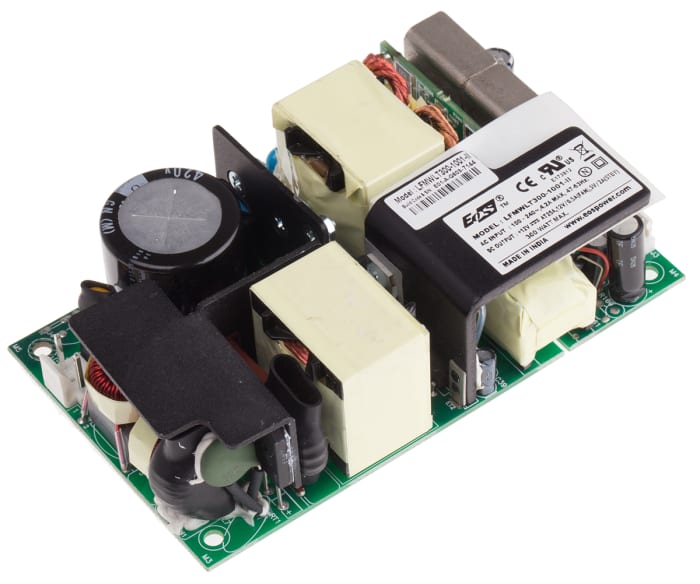

This EOS Power LFMWLT300-1001 is an open frame AC/DC switch mode power supply designed for medical applications. It delivers a 12V output at 15A, providing 300W of power with forced air cooling.
The power supply features a universal input voltage range from 90V ac to 390V ac and offers adjustable output voltage. It boasts high efficiency of 88% and low leakage current compliant with IEC 60601-1 standards. The compact form factor measures 127mm x 76.2mm x 38.1mm (5 x 3 x 1.5 inches).
Key features include remote sensing, remote on/off control, and a Power Good function. It also provides a 12V fan output and a 5V standby output. Protection features include overload, over-temperature, and short-circuit protection. EMC compliance is met with EN5022-B, CISPR22-B, and FCC Part 15 Class B standards.
Typical applications for this series include dental and laboratory equipment, endoscopes, instruments, pumps, drips, medical monitors, and defibrillators. It is designed for chassis mounting.
The LFMWLT300-1001 has a maximum output voltage of 12V.
The maximum output current is 15A.
The power rating is 300W with forced air cooling.
The input voltage range is 90V ac to 390V ac.
The operating temperature range is 0°C to 50°C, with derating up to 70°C.
The dimensions are 127.0mm x 76.2mm x 38.1mm (5.00" x 3.00" x 1.50").
It complies with IEC, FCC, EN, CB, and IEC 60601-1 standards.
