Mfr Part #:

LFMWLT200-1301

Mfr Name: EOS Power

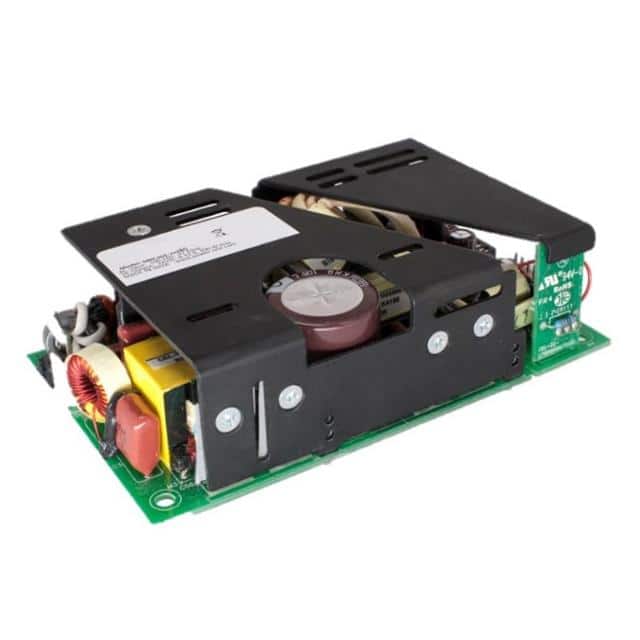

The EOS Power LFMWLT200-1301 is an enclosed AC/DC converter with a 12V output, delivering 160W of power. It features a universal input voltage range and is designed for medical applications.

Stock on Request

LFMWLT200-1301 Description

Short technical summary and product information.

The EOS Power LFMWLT200-1301 is a 160W AC/DC converter designed for demanding applications, particularly in the medical field. It operates with a universal input voltage range of 90-264 VAC or 120-390 VDC, making it suitable for global use.

This converter provides a stable 12V output with a maximum current of 13.33A. Key electrical specifications include an efficiency of 86% typical, a hold-up time greater than 10ms, and comprehensive protection features such as over-current, over-voltage, and short-circuit protection. It also offers adjustable output voltage and remote sense capabilities.

Mechanically, the LFMWLT200-1301 features a compact form factor with dimensions of 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm). It is designed for chassis mounting and has an enclosed type, ensuring durability and ease of integration into various systems. The operating temperature range is -20°C to 70°C with derating.

Compliance is met with approvals from CB, CE, cUL, NEMKO, and UL, and it is RoHS3 Compliant. The high isolation voltage of 5.9 kV further enhances its suitability for medical and industrial environments.

LFMWLT200-1301 Quick Information

Product Type: AC/DC Converter

Series: MWLT200

Canonical Name: EOS Power LFMWLT200-1301 AC/DC Converter

Subcategory: Power Supplies

LFMWLT200-1301 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LFMWLT200-1301 Features

Provides 160W output power at 12V.
Universal input voltage for global compatibility.
Designed for medical applications with relevant approvals.
Compact chassis mount, enclosed form factor.
Features adjustable output and remote sense.

LFMWLT200-1301 Applications

Suitable for medical equipment power.
Ideal for industrial control systems.
Used in general power supply applications.
Designed for systems requiring high reliability.

LFMWLT200-1301 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage of the LFMWLT200-1301?

The LFMWLT200-1301 provides a 12V output.

What is the maximum output power of the LFMWLT200-1301?

The LFMWLT200-1301 delivers 160W of output power under convection cooling and up to 200W with forced air.

What is the input voltage range for the LFMWLT200-1301?

The LFMWLT200-1301 accepts a universal input voltage range of 90-264 VAC or 120-390 VDC.

What are the dimensions of the LFMWLT200-1301?

The dimensions of the LFMWLT200-1301 are 127.0mm L x 76.2mm W x 38.1mm H (5.00" L x 3.00" W x 1.50" H).

What is the operating temperature range for this converter?

The operating temperature range for the LFMWLT200-1301 is -20°C to 70°C, with derating applied.

What approvals does the LFMWLT200-1301 have?

The LFMWLT200-1301 is approved by CB, CE, cUL, NEMKO, and UL.

Category	AC DC Converters
Manufacturer Name	EOS Power
Applications	Medical
Approval Agency	CB, CE, cUL, NEMKO, UL
Current	13.33 A
Efficiency	84% typical %
Features	Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Height	38.1mm (1.50")
Input Frequency	47-63 Hz
Input Voltage	90-264 VAC
Length	127.0mm (5.00")
Medical Grade	Yes
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-20°C ~ 70°C (With Derating)
Power	200 W
Power (Watts)	160W (200W Forced Air)
Relative Humidity	95% Rh, noncondensing
SVHC Present	Not Present
Storage Temperature	-40 to +85°C
Type	Enclosed
Voltage	12 V
Width	76.2mm (3.00")
