| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

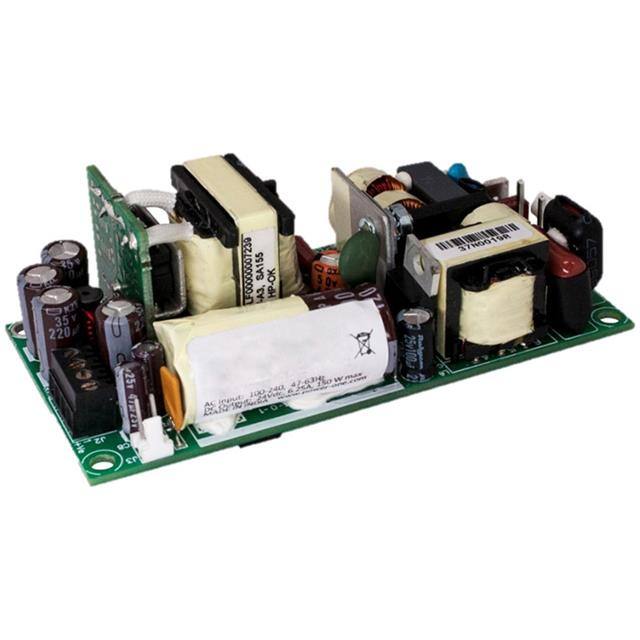

The EOS Power LFMWLT150-1301 is an open-frame AC/DC converter designed for medical applications. It provides a 12V output with a continuous power rating of 100W, which can be boosted to 150W with forced air cooling.
This converter features universal input voltage (90-264 VAC), high efficiency up to 86%, and power factor correction (PFC). It includes adjustable output, over-current protection, and over-voltage protection for reliable operation. The device meets IEC60601-1-2:2014 (4th Edition) standards and holds medical approvals.
With a compact form factor of 4 x 2 x 1.3 inches, it is suitable for chassis mounting. The operating temperature range is -20°C to 70°C, and it boasts a high MTBF of 2.4 million hours.
Key electrical specifications include a 1.7A max input current at 120 VAC, 6ms hold-up time at 120 VAC, and low leakage current. It also offers a 12V auxiliary output for fan voltage.
The main output voltage is 12V.
The maximum continuous output power is 100W.
The efficiency is typically 86% at 230 VAC.
The operating temperature range is -20°C to 70°C.
Yes, it is RoHS3 Compliant.
