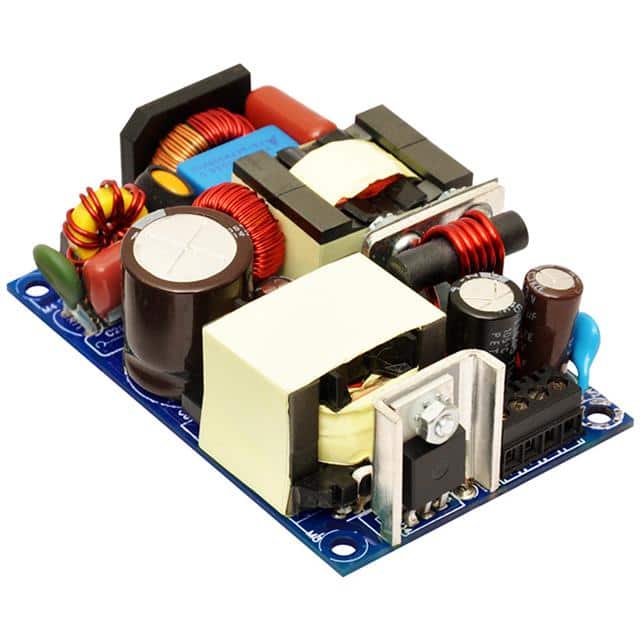

The EOS Power LFMWLP75-1001 is an open-frame, chassis-mount AC/DC converter designed for medical applications. It delivers up to 75W of power with a 12V output voltage and a maximum current of 6.25A.
This converter operates with a universal input voltage range of 85-264 VAC and features efficiencies up to 90%. Key electrical specifications include line regulation of +/-0.5%, load regulation of +/-1%, and a hold-up time greater than 16 ms. It also incorporates features like Active PFC and dual fusing.
The unit has a compact form factor measuring 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm). It operates within a temperature range of -40°C to 70°C and meets stringent medical standards including EN60601 3rd Edition and IEC60601-1-2 (4th Edition), with 2xMOPP protection.
The output voltage is 12V.
The maximum output current is 6.25A.
The power rating is 75W.
The input voltage range is 85-264 VAC.
The typical efficiency is 90%.
The operating temperature range is -40°C to 70°C.
It is approved to EN60601 3rd Edition and meets standard IEC60601-1-2 : 2014 (4th Edition).
