| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

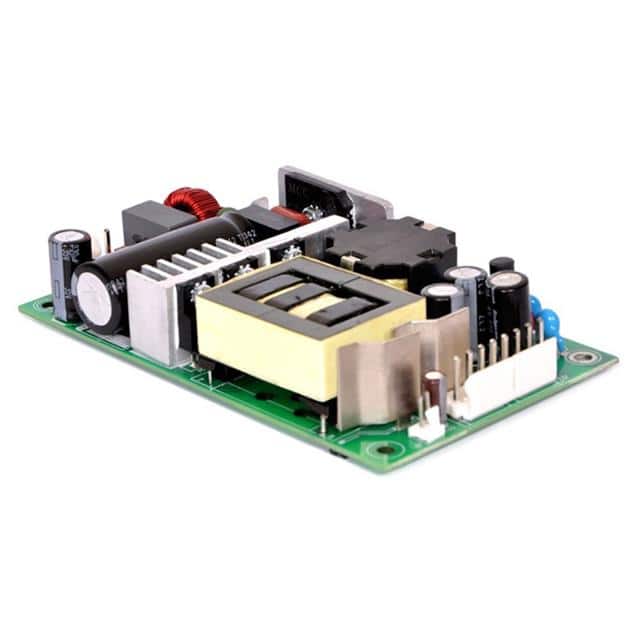

The EOS Power LFMWLP350-1303 is an AC/DC converter designed to deliver a 24V output at 200W. It accepts a universal input voltage of 90-264 VAC or 390 VDC, with a frequency range of 47-63 Hz. The converter achieves a typical efficiency of 94% at 48V and 58V test conditions, and maintains a low no-load power consumption of less than 0.5W.
Input current is rated at 3.6A maximum at 115 VAC and 1.8A maximum at 230 VAC. Inrush current is limited to 25A at 115 VAC, 45A at 230 VAC, and 75A at 264 VAC. Leakage current is typically 300 µA, and touch current is less than 100 µA. These electrical characteristics make the LFMWLP350-1303 suitable for a variety of power supply applications requiring reliable AC to DC conversion.
90-264 VAC or 390 VDC.
47-63 Hz.
94% at 48V and 58V test conditions.
Less than 0.5W.
25A at 115 VAC, 45A at 230 VAC, 75A at 264 VAC.
300 µA typical.
Less than 100 µA.
