| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

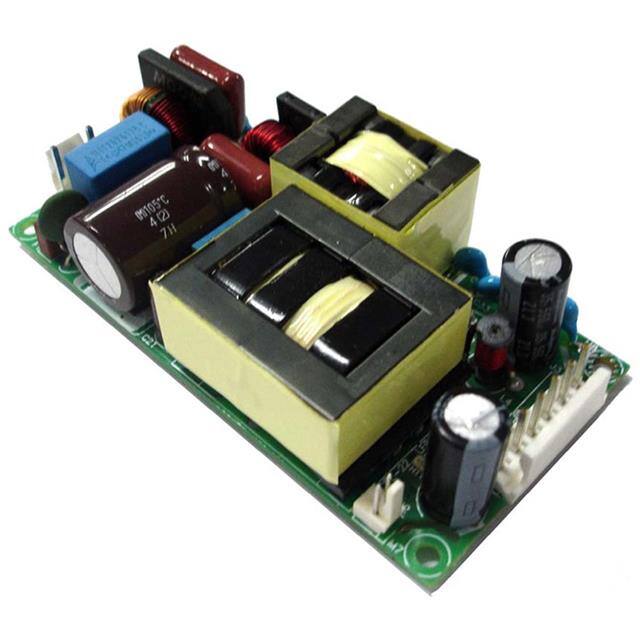

The EOS Power LFMWLP225-1306 is an open frame AC/DC power supply designed for medical applications. It offers a maximum output power of 225W with forced air cooling or 120W with natural convection.
The converter accepts a universal input voltage range of 85-264 VAC and operates at frequencies between 47-63 Hz. Key electrical specifications include high efficiency up to 94%, power factor exceeding 0.95, and low no-load power consumption of less than 0.5W.
Designed for reliability, it features a MTBF of 3.37 million hours and operates within a wide temperature range of -40°C to +70°C. Safety approvals include CB, CE, cUL, NEMKO, and UL, meeting IEC60601-1-2 standards for medical equipment.
With its compact dimensions of 4 x 2 x 1 inches and chassis mount type, the LFMWLP225-1306 is suitable for integration into various medical devices and systems requiring a stable and compliant power solution.
The LFMWLP225-1306 provides 225W with forced air cooling and up to 120W with natural convection cooling.
The input voltage range is 85-264 VAC or 390 VDC.
The operating temperature range is -40°C to +70°C.
Yes, it has Medical (BF) Safety Approvals and meets standard IEC60601-1-2:2014 (4th Edition).
The MTBF is 3.37 million hours, calculated per Telcordia -SR332-issue 3.
