| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

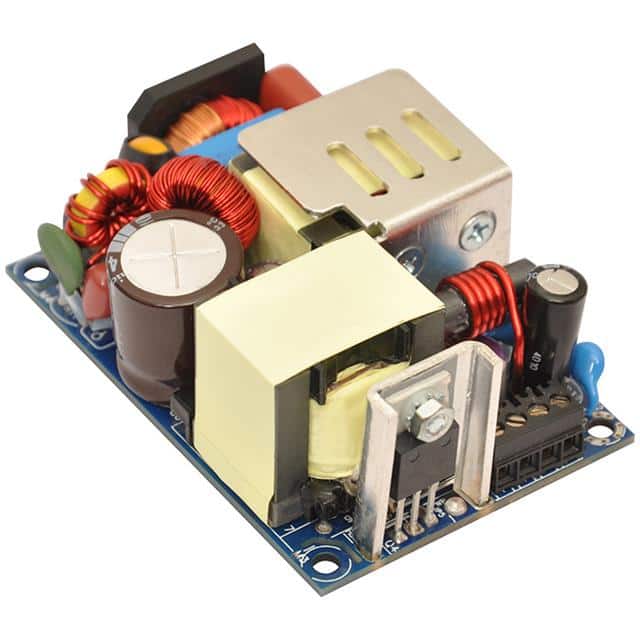

The EOS Power LFMWLP120-1304 is a 100W open-frame AC-DC power supply with a 48V nominal output voltage and 2.08A current. It is designed for medical applications and features a universal input voltage range of 85-264 VAC.
This power supply boasts high efficiency up to 93% and includes features such as adjustable output, active PFC, standby output, and dual fusing. It operates within a wide temperature range of -40°C to 70°C and meets stringent medical safety standards, including EN60601 3rd Edition and IEC60601-1-2.
With a compact 3" x 2" footprint and a height of 1.18", the LFMWLP120-1304 is suitable for integration into various medical devices. It offers robust protection features including over-current, over-voltage, and short-circuit protection, ensuring reliable operation.
Key electrical specifications include a line regulation of +/-0.5%, load regulation of +/-1%, and a hold-up time greater than 10 ms. The isolation voltage is rated at 4000 VAC from input to output, with 2 MOPP protection.
The nominal output voltage is 48V.
The maximum output current is 2.08A.
The operating temperature range is -40°C to +70°C.
It meets EN60601 3rd Edition and IEC60601-1-2 standards, and is suitable for BF applications.
The efficiency is up to 93%.
