LFE3-17EA-6FN484C
Lattice Semiconductor Corporation

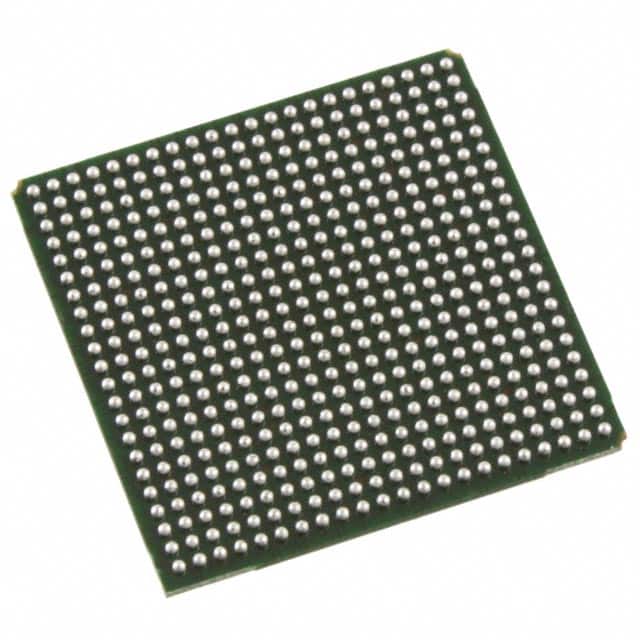

The Lattice LFE3-17EA-6FN484C is an FPGA with 17000 logic elements and 222 I/O pins. It features a surface mountable 484-FPBGA package.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
116,481 pcs
|
116481 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,581 pcs
|
2581 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Total RAM Bits | |
| Voltage |
The Lattice Semiconductor LFE3-17EA-8FN484C is a Field Programmable Gate Array (FPGA) designed for increased system integration. It offers 17,000 logic elements and 2,125 logic array blocks, providing significant processing power.
This FPGA features 222 I/O pins and 716,800 total RAM bits, supporting flexible memory configurations. The operating voltage ranges from 1.14V to 1.26V, with an operating temperature range of 0°C to 85°C (TJ).
The device supports embedded SERDES with data rates from 150 Mbps to 3.2 Gbps and up to 16 channels. It also includes up to ten PLLs for clock management. The LFE3-17EA-8FN484C is available in a 484-FPBGA (23x23mm) surface mount package.
The LFE3-17EA-8FN484C FPGA has 17,000 logic elements.
The LFE3-17EA-8FN484C has 222 I/O pins.
The operating voltage range for this FPGA is 1.14V to 1.26V.
The LFE3-17EA-8FN484C is supplied in a 484-FPBGA (23x23mm) package.
The operating temperature range is 0°C to 85°C (TJ).
The total RAM bit count is 716,800 bits.
The maximum SERDES data rate is 3.2 Gbps.
