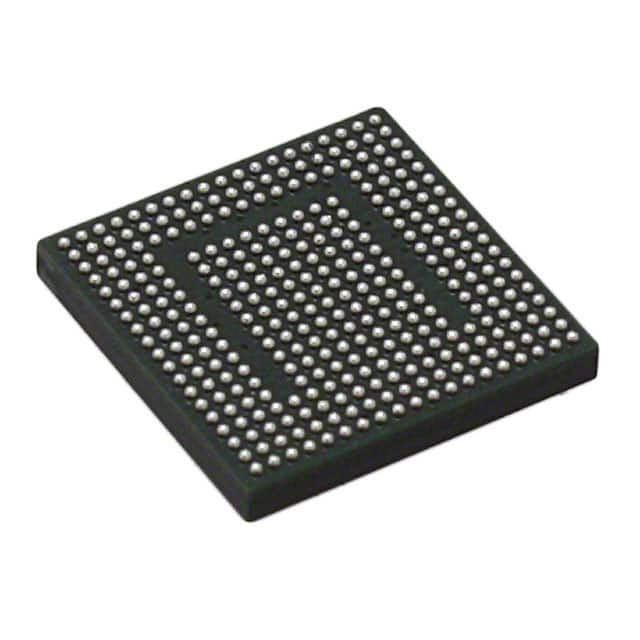

LFE3-17EA-6MG328C The Lattice Semiconductor LFE3-17EA-6MG328C is an FPGA with 17,000 logic elements and 116 I/O pins. It operates at 1.2V and is available in a surface mount package.
Mfr Part #:

LFE3-17EA-6MG328C

Available from 2 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor LFE3-17EA-6MG328C is an FPGA with 17,000 logic elements and 116 I/O pins. It operates at 1.2V and is available in a surface mount package.
✓ Total Stock: 12,344 pcs

LFE3-17EA-6MG328C Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
11,344 pcs
On Request
11344 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LFE3-17EA-6MG328C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Package / Case
Supplier Device Package
Tape & Reel
Total RAM Bits
Voltage
View Similar Products (0)

LFE3-17EA-6MG328C Description

Short technical summary and product information.

The Lattice Semiconductor LFE3-17EA-6MG328C is a Field Programmable Gate Array (FPGA) from the LatticeECP3 family. This device offers a logic density of 17,000 LUTs and provides 116 I/O pins, making it suitable for various embedded applications.



Key electrical specifications include an operating voltage range of 1.14V to 1.26V and a total of 716,800 bits of embedded memory. The operating temperature range is 0°C to 85°C (TJ).



The FPGA features a 328-LFBGA, CSBGA package and is designed for surface mount installation. The datasheet indicates embedded SERDES capabilities with data rates up to 3.2 Gbps and support for up to 16 channels, along with flexible memory resources and programmable I/O buffers supporting a wide range of interfaces.

LFE3-17EA-6MG328C Quick Information

Product Type: FPGA
Series: LatticeECP3
Canonical Name: Lattice Semiconductor LFE3-17EA-6MG328C FPGA
Subcategory: Field Programmable Gate Array

LFE3-17EA-6MG328C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LFE3-17EA-6MG328C Features

  • 17,000 logic elements (LUTs)
  • 116 programmable I/O pins
  • 1.2V core operating voltage
  • 328-CSBGA surface mount package
  • Up to 3.2 Gbps SERDES data rates

LFE3-17EA-6MG328C Applications

  • High logic density integration
  • Embedded SERDES applications
  • Source synchronous I/O support
  • Flexible device configuration
  • System level support features

LFE3-17EA-6MG328C FAQs

6 frequently asked questions generated from this part’s specifications.
What is the number of logic elements in the LFE3-17EA-6MG328C FPGA?

The LFE3-17EA-6MG328C FPGA has 17,000 logic elements.

How many I/O pins does the LFE3-17EA-6MG328C FPGA offer?

The LFE3-17EA-6MG328C FPGA offers 116 I/O pins.

What is the operating voltage for the LFE3-17EA-6MG328C FPGA?

The operating voltage for the LFE3-17EA-6MG328C FPGA is between 1.14V and 1.26V.

What type of package is the LFE3-17EA-6MG328C FPGA supplied in?

The LFE3-17EA-6MG328C FPGA is supplied in a 328-LFBGA, CSBGA package.

What is the operating temperature range for this FPGA?

The operating temperature range for this FPGA is 0°C to 85°C (TJ).

What is the maximum SERDES data rate supported by this FPGA?

The maximum SERDES data rate supported by this FPGA is 3.2 Gbps.
