| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,792 pcs
|
4792 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Total RAM Bits | |
| Voltage |
The Lattice LFE3-150EA-7FN1156I is a Field Programmable Gate Array (FPGA) belonging to the LatticeECP3 family. This device offers a high logic density with 149,000 LUTs and 586 I/O pins, making it suitable for complex system integration.
Key features include embedded SERDES capabilities supporting data rates from 150 Mbps to 3.2 Gbps per channel, with support for protocols like PCI Express, Ethernet, and Serial RapidIO. The FPGA also provides substantial memory resources, including up to 6.85 Mbits of sysMEM Embedded Block RAM and 303K bits of distributed RAM. It incorporates sysDSP blocks for high-performance multiply and accumulate operations and sysCLOCK Analog PLLs and DLLs for flexible clock management.
The device operates within a voltage range of 1.14V to 1.26V and has an operating temperature range of -40°C to 100°C (TJ). It supports a wide array of I/O standards, including LVTTL, LVCMOS, SSTL, and HSTL, with programmable sysI/O buffers offering features like on-chip termination.

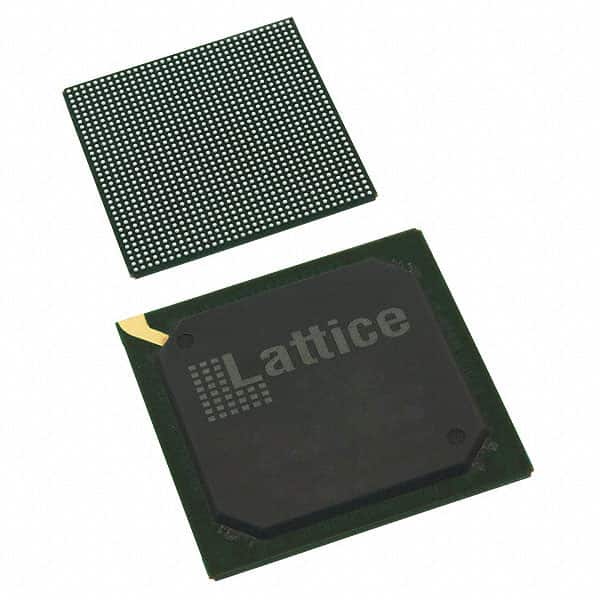

Packaged in a 1156-pin FBGA (35x35mm), the LFE3-150EA-7FN1156I is designed for surface mount applications. Its flexible configuration options and robust feature set make it suitable for high-volume, high-speed, and low-cost applications.
The LFE3-150EA-7FN1156I FPGA has a logic density of 149,000 LUTs.
The LFE3-150EA-7FN1156I offers 586 I/O pins.
The operating voltage range for the LFE3-150EA-7FN1156I is 1.14V to 1.26V.
The LFE3-150EA-7FN1156I is supplied in a 1156-pin FBGA package.
The embedded SERDES on the LFE3-150EA-7FN1156I supports data rates up to 3.2 Gbps.
The LFE3-150EA-7FN1156I features up to 6.85 Mbits of sysMEM Embedded Block RAM.
