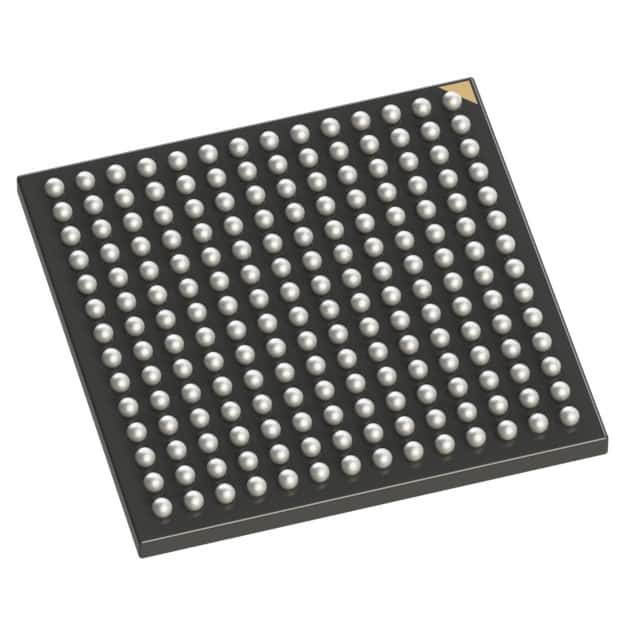

LFD2NX-40-7BG196I The Lattice Semiconductor LFD2NX-40-7BG196I is a Certus™-NX FPGA IC. It features 39000 logic elements and 150 I/O pins.
Mfr Part #:

LFD2NX-40-7BG196I

Available from 2 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor LFD2NX-40-7BG196I is a Certus™-NX FPGA IC. It features 39000 logic elements and 150 I/O pins.
✓ Total Stock: 59,982 pcs

LFD2NX-40-7BG196I Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
36,000 pcs
On Request
36000 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
23,982 pcs
On Request
23982 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LFD2NX-40-7BG196I Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage
Voltage Supply
View Similar Products (0)

LFD2NX-40-7BG196I Description

Short technical summary and product information.

The Lattice Semiconductor LFD2NX-40-7BG196I is a Field Programmable Gate Array (FPGA) integrated circuit from the Certus™-NX series. This device offers 39000 logic elements and 9750 LABs/CLBs, providing significant processing capability.



It includes 1,548,288 total RAM bits for data storage and 150 I/O pins for interfacing with other components. The operating voltage range is 0.95V to 1.05V. This FPGA is designed for surface mount installation and operates within a temperature range of -40°C to 100°C (TJ).



The package is a 196-LFBGA, with an alternative designation of 196-CABGA (12x12). Its specifications make it suitable for various embedded applications requiring flexible logic and high-speed processing.

LFD2NX-40-7BG196I Quick Information

Product Type: FPGA IC
Series: Certus™-NX
Canonical Name: Lattice Semiconductor Corporation Certus™-NX FPGA IC LFD2NX-40-7BG196I
Subcategory: Field Programmable Gate Array

LFD2NX-40-7BG196I Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LFD2NX-40-7BG196I Features

  • 39000 logic elements and 9750 LABs/CLBs.
  • 1,548,288 total RAM bits available.
  • 150 I/O pins for external connections.
  • 0.95V to 1.05V operating supply voltage.
  • Surface mountable in a 196-LFBGA package.

LFD2NX-40-7BG196I Applications

  • Suitable for embedded processing tasks.
  • Offers flexible logic implementation.
  • Designed for high-speed applications.
  • Interfacing with other digital components.

LFD2NX-40-7BG196I FAQs

4 frequently asked questions generated from this part’s specifications.
What are the key electrical specifications for the LFD2NX-40-7BG196I FPGA?

The LFD2NX-40-7BG196I features 39000 logic elements, 9750 LABs/CLBs, 1,548,288 total RAM bits, and 150 I/O pins. It operates at a supply voltage of 0.95V to 1.05V.

What is the operating temperature range for this FPGA?

The operating temperature range for the LFD2NX-40-7BG196I is -40°C to 100°C (TJ).

What package type is the LFD2NX-40-7BG196I FPGA supplied in?

This FPGA is supplied in a 196-LFBGA package, also referred to as 196-CABGA (12x12).

How is the LFD2NX-40-7BG196I FPGA mounted?

The LFD2NX-40-7BG196I FPGA is designed for surface mount installation.
