LFCPNX-100-9LFG672C The Lattice Semiconductor LFCPNX-100-9LFG672C is an FPGA with 96,000 logic elements and 313 I/O pins. It operates at 0.95V to 1.05V and features a surface mount package.
Mfr Part #:

LFCPNX-100-9LFG672C

Available from 1 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor LFCPNX-100-9LFG672C is an FPGA with 96,000 logic elements and 313 I/O pins. It operates at 0.95V to 1.05V and features a surface mount package.
✓ Total Stock: 5,369 pcs

LFCPNX-100-9LFG672C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
5,369 pcs
On Request
5369 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LFCPNX-100-9LFG672C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Supplier Package
Total RAM Bits
Voltage
View Similar Products (0)

LFCPNX-100-9LFG672C Description

Short technical summary and product information.

The Lattice Semiconductor LFCPNX-100-9LFG672C is a CertusPro-NX series FPGA designed for various embedded applications. It features 96,000 logic elements and 24,000 LABs, with a total of 3,833,856 RAM bits.



This device offers 313 I/O pins and operates within a voltage range of 0.95V to 1.05V. The operating temperature is specified from 0°C to 85°C (TJ).

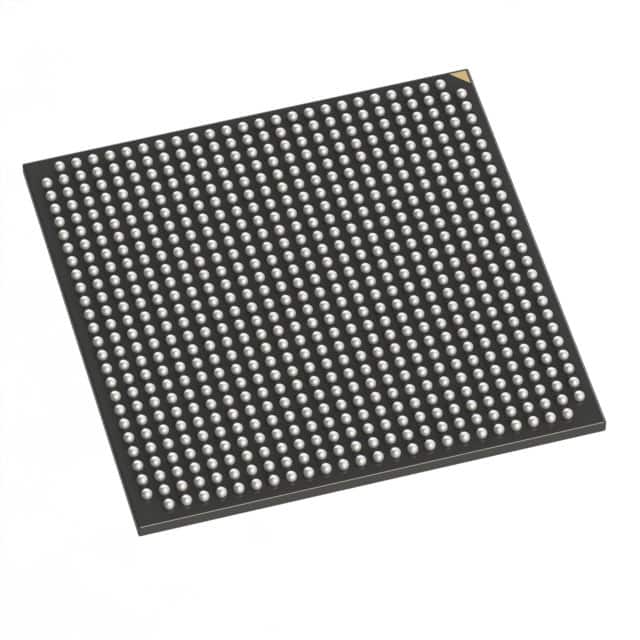

The LFCPNX-100-9LFG672C comes in a 672-BBGA package, with the supplier package specified as 672-FCBGA (27x27). It is designed for surface mount installation.



Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. However, these compliance details are unverified.

LFCPNX-100-9LFG672C Quick Information

Product Type: FPGA
Series: CertusPro-NX
Canonical Name: Lattice Semiconductor Corporation LFCPNX-100-9LFG672C FPGA
Subcategory: Field Programmable Gate Array

LFCPNX-100-9LFG672C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LFCPNX-100-9LFG672C Features

  • 96,000 logic elements available.
  • 313 input/output pins.
  • 0.95V to 1.05V operating voltage.
  • Surface mountable package.
  • 0°C to 85°C operating temperature.

LFCPNX-100-9LFG672C Applications

  • Suitable for industrial applications.
  • Designed for automotive solutions.
  • Used in video surveillance systems.
  • Applicable to medical devices.

LFCPNX-100-9LFG672C FAQs

5 frequently asked questions generated from this part’s specifications.
How many logic elements does the LFCPNX-100-9LFG672C FPGA have?

The LFCPNX-100-9LFG672C FPGA has 96,000 logic elements.

What is the operating voltage for the LFCPNX-100-9LFG672C FPGA?

The operating voltage for the LFCPNX-100-9LFG672C FPGA is between 0.95V and 1.05V.

What is the operating temperature range for this FPGA?

The operating temperature range for the LFCPNX-100-9LFG672C FPGA is 0°C to 85°C (TJ).

What type of package is the LFCPNX-100-9LFG672C FPGA in?

The LFCPNX-100-9LFG672C FPGA is in a 672-BBGA package, with the supplier package being 672-FCBGA (27x27).

How many I/O pins does the LFCPNX-100-9LFG672C FPGA have?

The LFCPNX-100-9LFG672C FPGA has 313 I/O pins.
