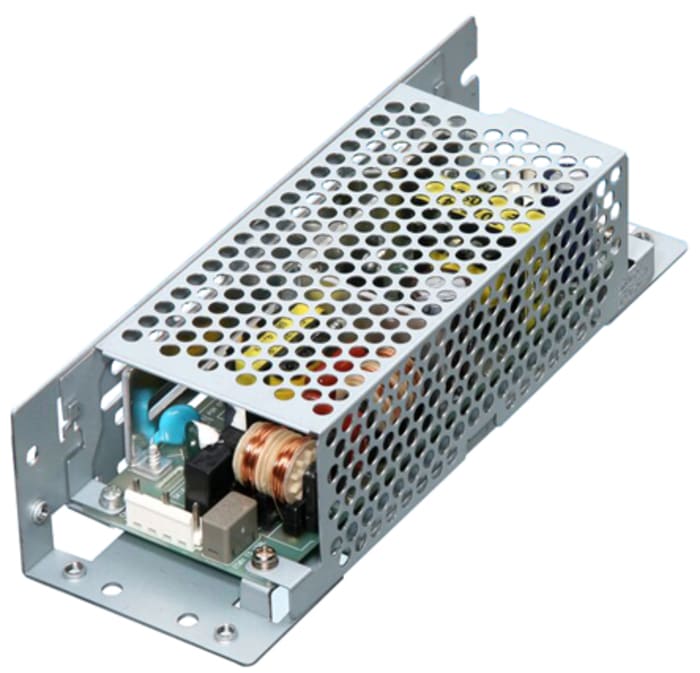

The Cosel LFA75F-5-SNY is a 75W enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a stable 5V dc output with a maximum current of 15A.
This power supply operates with a universal input voltage range of 85V ac to 264V ac, making it suitable for global use. It boasts an efficiency of 80% at 200V ac input and operates within a wide temperature range of -10°C to 70°C.
Key features include compliance with safety standards such as UL60950-1, CSA60950-1, and EN62368-1, as well as EMI compliance with FCC-B, CISPR22-B, and VCCI-B standards. The unit is chassis mounted and built with a rugged PCB type construction.
It also includes built-in protection circuits for inrush current, overcurrent, and overvoltage. The LFA series complies with IEC61000-3-2 for harmonic attenuation.
The input voltage range is 85VAC to 264VAC.
It provides 5VDC nominal output at 15A.
The nominal power rating is 75W.
The operating temperature range is -10°C to 70°C.
It is designed for chassis mount.
It holds UL60950-1, C-UL(CSA60950-1), and EN62368-1 safety approvals.
It complies with FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B.
