| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

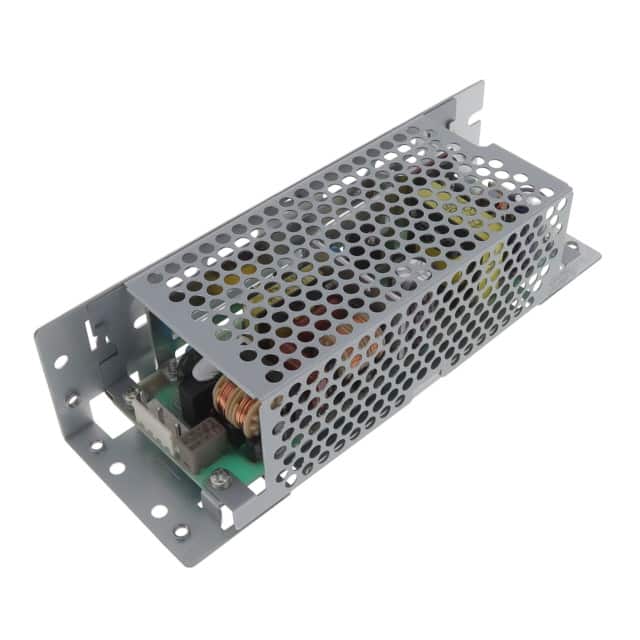

The Cosel LFA75F-5-SN is a versatile AC-DC power supply designed for ITE (Commercial) applications. This enclosed unit features a chassis mount for easy integration into systems. It provides a stable 5V DC output with a maximum current of 15A, delivering up to 75W of power.
The power supply accepts a universal AC input voltage range of 85-264V, making it suitable for global use. Key electrical specifications include a typical efficiency of 76.0% at 200V input and 85-264V input voltage range. It also incorporates built-in protection circuits for inrush current, overcurrent, and overvoltage.
Operating within a temperature range of -10°C to 70°C, the LFA75F-5-SN is built for reliability. It meets various safety standards including CE, CSA, cURus, TUV, and UL, with compliance to 60950-1 and 62368-1 standards. The dimensions are 150.1mm x 50.0mm x 33.5mm.
85 - 264 VAC.
Enclosed chassis-mount.
-10°C to 70°C.
15A.
5V.
Maximum 120mVp-p at 0-50°C, 160mVp-p at -10-0°C, and 240mVp-p at Io=0-35%.
UL 60950-1 and UL 62368-1, CE, CSA, cURus, TUV.
