Mfr Part #:

LFA75F-36-SNJ1Y

Mfr Name: Cosel

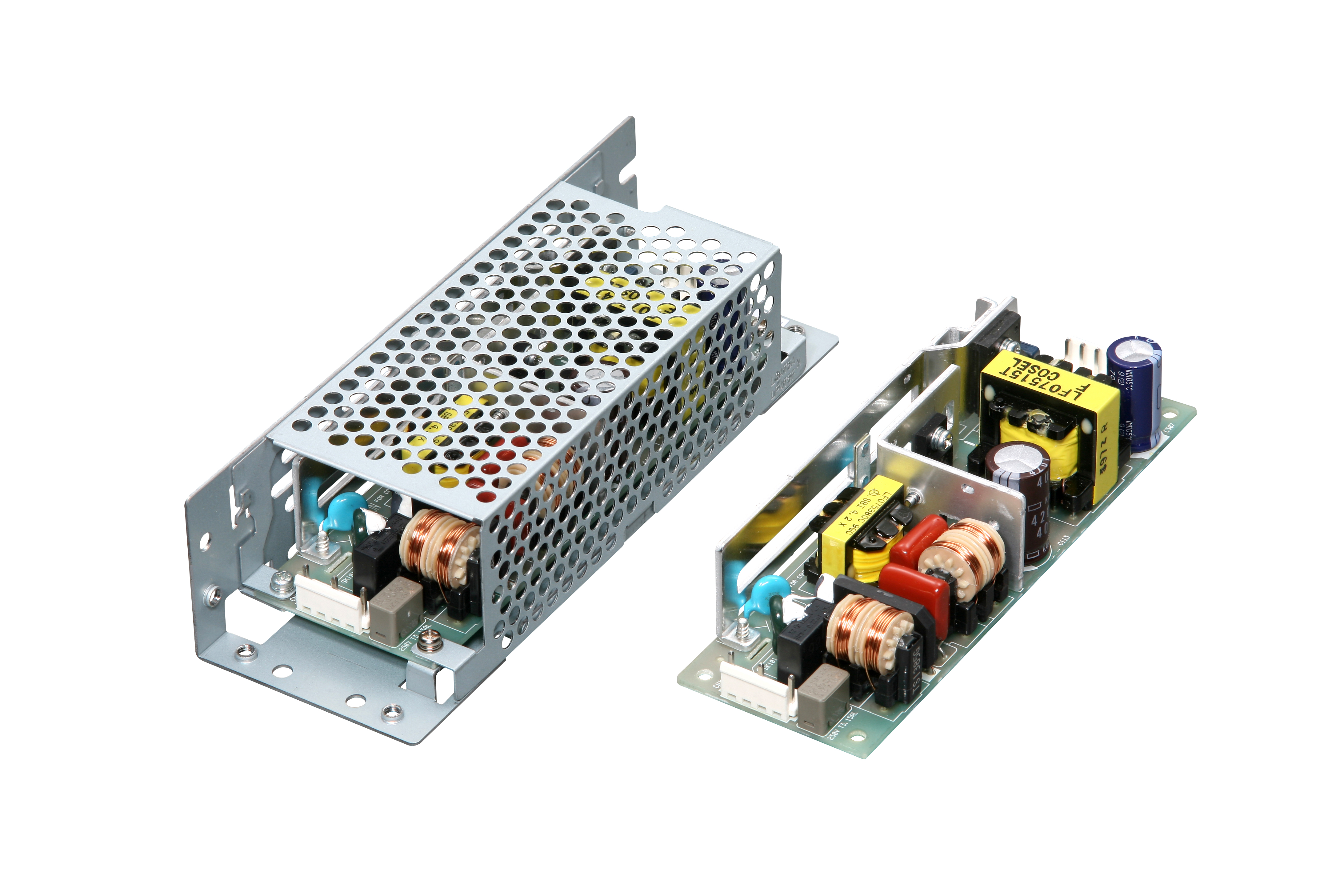

The Cosel LFA75F-36-SNJ1Y is an enclosed AC/DC converter providing a 36VDC output at 2.1A, with a maximum power of 75.6W. It features universal input voltage and high efficiency.

Stock on Request

LFA75F-36-SNJ1Y Description

Short technical summary and product information.

The Cosel LFA75F-36-SNJ1Y is a versatile AC/DC power supply designed for ITE (Commercial) applications. It operates with a universal input voltage range of AC 85-264V, making it suitable for global use.

This enclosed converter delivers a stable 36VDC output with a maximum current of 2.1A, providing up to 75.6W of power. It boasts high efficiency, reaching up to 84.5% at 200V AC input, and features built-in protection circuits for inrush current, overcurrent, and overvoltage.

The LFA75F series is designed for chassis mounting and complies with international safety standards including UL60950-1, CSA60950-1, and EN62368-1. It also meets EMI standards such as FCC-B and CISPR22-B, ensuring reliable performance in various electronic environments. The operating temperature range is from -10°C to 70°C.

LFA75F-36-SNJ1Y Quick Information

Product Type: AC DC Converter

Series: LFA

Canonical Name: Cosel LFA75F Series AC/DC Converter, 36VDC, 2.1A, 75.6W

Subcategory: AC DC Converters

LFA75F-36-SNJ1Y Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LFA75F-36-SNJ1Y Features

Provides 36VDC output at 2.1A.
Universal AC input voltage range.
High efficiency up to 84.5%.
Chassis mountable enclosed type.
Compliant with safety and EMI standards.

LFA75F-36-SNJ1Y Applications

Used in general-purpose industrial control equipment
Suitable for commercial ITE (Information Technology Equipment)
Ideal for 75W single-output power supply applications
Compatible with SEMI F47 standard semiconductor equipment
Applicable for worldwide AC85-264V input systems

LFA75F-36-SNJ1Y FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range?

85-264 VAC.

What are the output voltage and current?

36 VDC at 2.1 A.

What is the maximum output power?

75.6 W.

What is the operating temperature range?

-10°C to 70°C.

What is the isolation voltage?

3 kV.

What mounting and enclosure type does it use?

Chassis mount, enclosed.

What safety certifications are held?

CE, CSA, cURus, TUV, UL.

Category	AC DC Converters
Manufacturer Name	Cosel
Applications	ITE (Commercial)
Approval Agency	CE, CSA, cURus, TUV, UL
Current	2.1 A
Efficiency	84.5% typ %
Height	33.5mm (1.32")
Input Voltage	AC 85-264V
Length	150.1mm (5.91")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-10°C ~ 70°C
Output Current	2.1A
Output Voltage	36V
Standard Number	60950-1; 62368-1
Type	Enclosed
Voltage	3 kV
Width	50.0mm (1.97")
