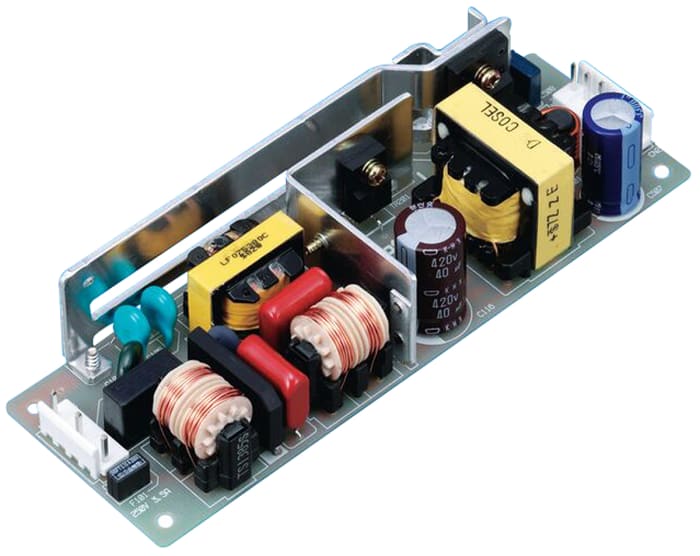

The Cosel LFA75F-15-Y is a versatile AC/DC power supply designed for various applications. This open-frame unit operates with a universal input voltage range from 85 to 264 VAC, making it suitable for global use.
Key electrical specifications include a 15V DC output voltage and a maximum output current of 5A, delivering a total power of 75W. The power supply boasts an efficiency of 83% at 200 VAC input. It also incorporates features such as harmonic attenuation compliant with IEC61000-3-2 and meets EMI standards including FCC-B and CISPR22-B.
Designed for chassis mounting, the LFA75F-15-Y has a compact form factor with dimensions of 150.1mm x 50.0mm x 33.5mm. It operates within an ambient temperature range of -10°C to 70°C and has an isolation voltage rating of 3 kV. The unit complies with safety standards such as UL60950-1 and EN62368-1.
The maximum output voltage is 15V DC.
The maximum output current is 5A.
The power output is 75W.
The input voltage range is 85-264 VAC.
The operating temperature range is -10°C to 70°C.
Yes, it features a harmonic attenuator that complies with IEC61000-3-2.
It meets safety standards including UL60950-1 and EN62368-1.
