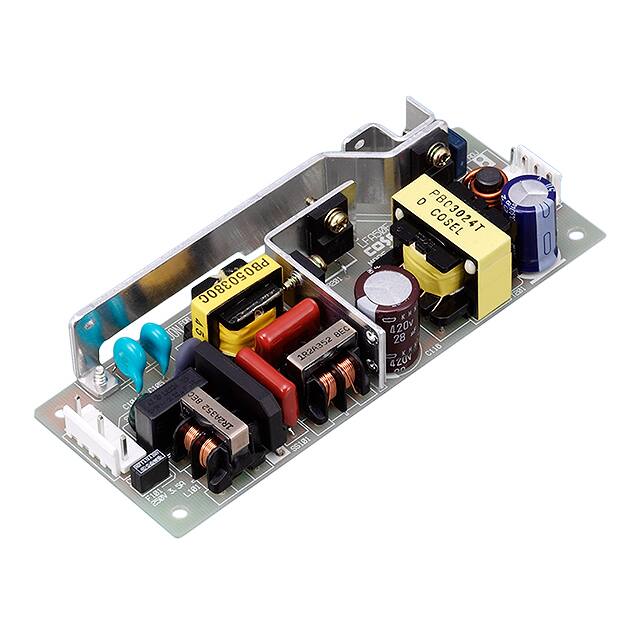

The Cosel LFA50F-15-Y is a versatile AC-DC power supply from the LFA series, designed as an open-frame unit for chassis mounting. It provides a stable 15V DC output with a maximum current of 3.5A, delivering a total maximum output wattage of 10.5W. This power supply operates with a universal input voltage range of AC85-264V and boasts an efficiency of up to 81.5% at AC200V input.
Key electrical specifications include a line regulation of 60mV maximum and a load regulation of 120mV maximum. Ripple and noise are kept to a minimum, with ripple at 120mVp-p maximum under typical operating conditions. The unit is built with robust protection circuits, including inrush current limiting, overcurrent protection (OCP), and overvoltage protection (OVP).
Designed for ITE (Commercial) applications, the LFA50F-15-Y meets stringent safety and EMI standards, with approvals from CE, CSA, cURus, TUV, and UL. It operates within a temperature range of -10°C to 70°C. The compact dimensions of 132.1mm x 50.0mm x 26.4mm make it suitable for integration into various equipment designs. This power supply is manufactured using SMD technology, requiring careful handling to prevent defects from PCB stress.
85-264VAC.
Open frame, chassis mount.
-10°C to 70°C.
15V at 0.7A.
10.5W.
81.5% typical at 100VAC, 83.0% at 200VAC.
CE, CSA, cURus, TUV, UL.
