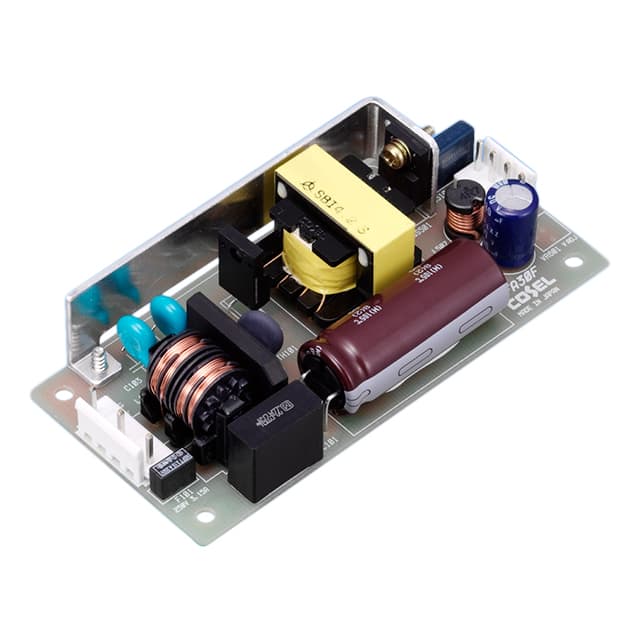

The Cosel LFA30F-15-Y is an open-frame AC DC converter designed for ITE (Commercial) applications. It delivers a stable 15V DC output with a maximum current of 2A, providing a total power output of 30W. The unit accepts a universal input voltage range of 85V AC to 264V AC, making it suitable for global use.
Key electrical specifications include an efficiency of 83% and compliance with harmonic distortion standards like IEC61000-3-2. The operating temperature range is from -10°C to 70°C. Safety approvals include CE, CSA, cURus, TUV, and UL, with compliance to standards such as 60950-1 and 62368-1.
This power supply is chassis mountable and has dimensions of 104.9mm in length, 50.0mm in width, and 26.4mm in height. It is designed with built-in protection circuits for inrush current, overcurrent, and overvoltage. The LFA series is known for its compact PCB construction and high reliability, though care should be taken to avoid stress on the PCB during handling.
85-264VAC.
15V at 2A, with a total power of 30W.
-10°C to 70°C.
Chassis mount open frame package measuring 104.9mm x 50.0mm x 26.4mm.
83% typical.
UL60950-1, C-UL (CSA60950-1), EN62368-1, CE, CSA, cURus, TUV, and UL.
FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B.
