| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

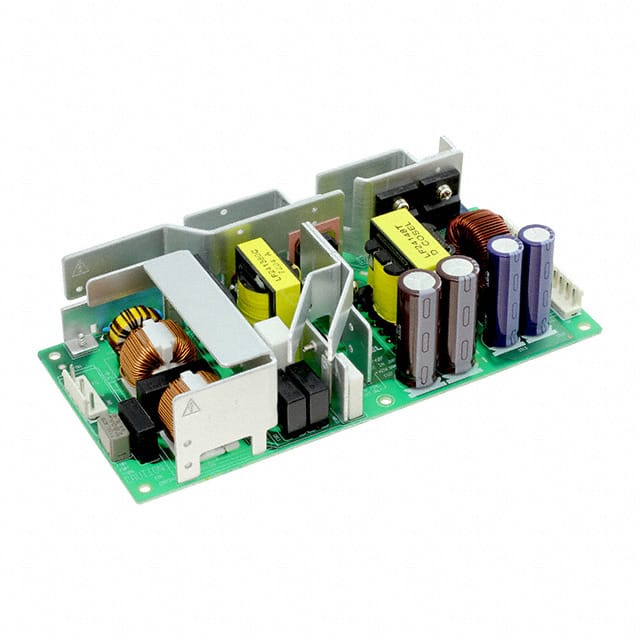

The Cosel LFA240F-48-Y is a chassis-mount AC/DC power supply designed for ITE (Commercial) applications. It operates with a universal input voltage range from 85 to 264 VAC and provides a stable 48V DC output with a maximum current of 5A, totaling 240W of power.
This open frame power supply boasts high efficiency, rated at 87.5%, and operates within a temperature range of -10°C to 70°C. It includes safety agency approvals from CE, CSA, cURus, TUV, and UL, adhering to standards such as 60950-1 and 62368-1.
The unit is designed with a compact PCB construction and includes built-in protection circuits. It also features a harmonic attenuator compliant with IEC61000-3-2 and complies with various EMI standards including FCC-B and CISPR22-B.
With dimensions of 132.1mm x 50.0mm x 26.4mm, this power supply is suitable for integration into various electronic equipment where space is a consideration. It is RoHS3 compliant and has an MSL rating of 1.
85-264 VAC.
Open frame, chassis mount.
-10°C to 70°C.
48 VDC.
5 A.
240 W.
87.5%.
