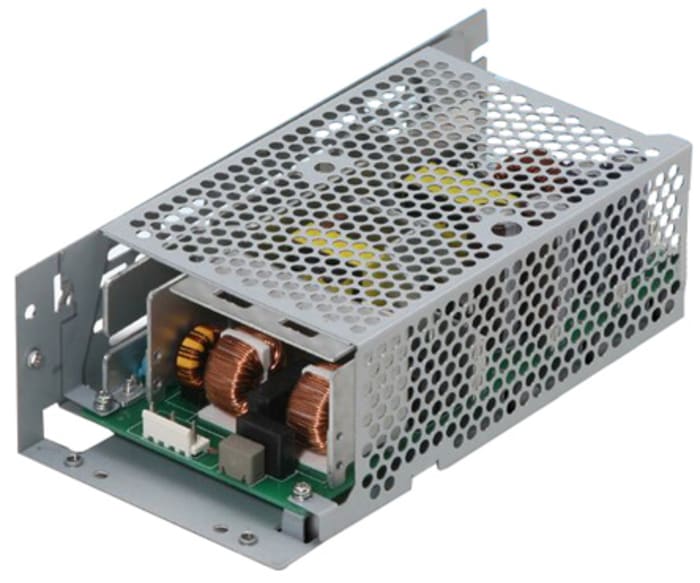

The Cosel LFA240F-48-SNY is a versatile AC/DC power supply designed for ITE (Commercial) applications. It delivers a stable 48V DC output with a maximum current of 5A, providing a total power output of 240W.
This enclosed unit accepts a universal input voltage range of 85-264 VAC, making it suitable for global use. Key electrical specifications include an efficiency of 87.5% and an isolation voltage of 3 kV. The operating temperature range is from -10°C to 70°C.
Designed for easy integration, the LFA240F-48-SNY features a chassis mount type. It complies with safety standards such as 60950-1 and 62368-1, and holds approvals from CE, CSA, cURus, TUV, and UL. The unit also incorporates built-in protection circuits for inrush current, overcurrent, and overvoltage.
Additional features include compliance with harmonic attenuator standards (IEC61000-3-2) and EMI standards (FCC-B, CISPR22-B, EN55011-B, EN55022-B, VCCI-B). The rugged PCB type construction enhances reliability.
The Cosel LFA240F-48-SNY provides a 48V DC output voltage and a maximum output current of 5A.
The LFA240F-48-SNY has a power rating of 240W.
This AC/DC converter accepts a universal input voltage range of 85-264 VAC.
The operating temperature range for the LFA240F-48-SNY is -10°C to 70°C.
The LFA240F-48-SNY is designed for chassis mounting.
The LFA240F-48-SNY complies with safety standards 60950-1 and 62368-1.
