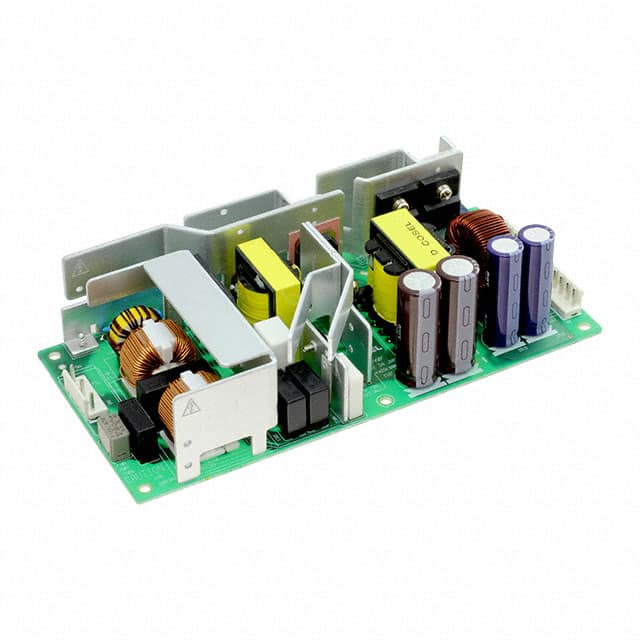

The Cosel LFA240F-48 is an open-frame AC/DC power supply designed for commercial ITE applications. It delivers a stable 48V DC output with a maximum power of 240W and an output current of 5A.
This converter operates with a universal input voltage range of 85-264 VAC, making it suitable for global use. It boasts a high efficiency of 87.5% and includes features such as inrush current limiting, overcurrent protection, and overvoltage protection.
The LFA240F-48 is designed for chassis mounting and has dimensions of 132.1mm x 50.0mm x 26.4mm. It meets safety standards including 60950-1 and 62368-1, and carries CE, CSA, cURus, TUV, and UL agency approvals.
Key electrical specifications include an isolation voltage of 3 kV and an operating temperature range of -10°C to 70°C. The unit also incorporates a harmonic attenuator compliant with IEC61000-3-2.
85 to 264 VAC.
48 VDC at 5 A.
240 W.
87.5%.
-10°C to 70°C.
Open frame package with chassis mount.
Yes, overcurrent and overvoltage protection, inrush current limiting, and power factor correction.
