| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

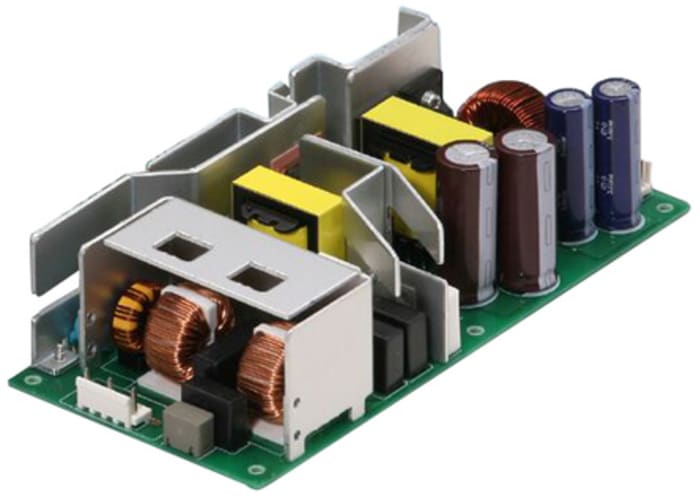

The Cosel LFA240F-36-Y is an open frame AC/DC power supply designed for ITE (Commercial) applications. It provides a stable 36VDC output at 6.7A, with a maximum power rating of 241W. The unit accepts a universal input voltage range from 85 to 264 VAC, making it suitable for global use.
Key electrical specifications include an efficiency of 87.5% and an isolation voltage of 3 kV. The operating temperature range is -10°C to 70°C. This power supply is chassis mountable and complies with various safety and EMI standards, including UL60950-1, C-UL(CSA60950-1), EN62368-1, FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B.
It features built-in inrush current, overcurrent, and overvoltage protection circuits. The harmonic attenuator complies with IEC61000-3-2. The power supply comes with a 5-year warranty. Note that this power supply is manufactured using SMD technology, and stress to the PCB such as twisting or bending may cause defects, so handle with care.
The Cosel LFA240F-36-Y has an output voltage of 36 VDC.
The maximum output current for the LFA240F-36-Y is 6.7 A.
The LFA240F-36-Y has a power rating of 241 W.
The input voltage range is 85-264 VAC.
The operating temperature range is -10°C to 70°C.
It uses chassis mount.
Yes, it is RoHS3 Compliant.
