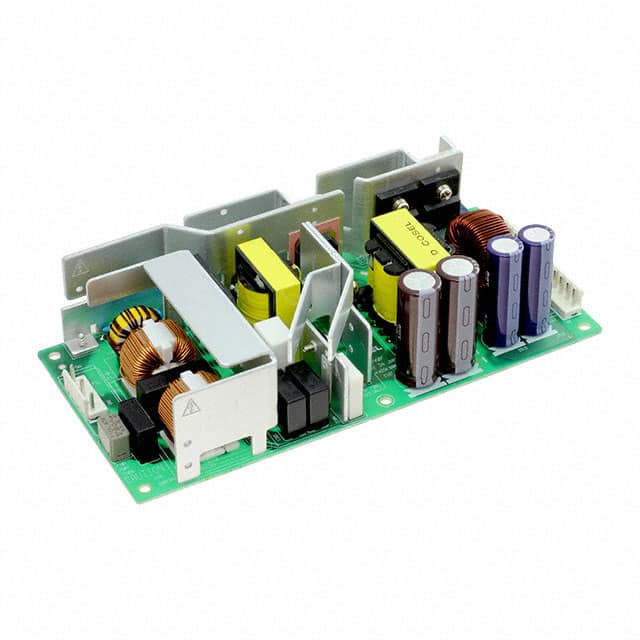

LFA240F-24
Cosel
The Cosel LFA240F-24 is a 240W AC/DC converter with a 24V output. It features an open frame design for chassis mounting and operates from an 85-264 VAC universal input range.
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |
This Cosel LFA240F-24-Y is an open-frame AC/DC power supply designed for ITE (Commercial) applications. It provides a stable 24VDC output with a maximum current of 10A, delivering up to 240W of power. The unit features a universal input voltage range of 85-264 VAC, making it suitable for global use.
With an efficiency of 87.5% at 200V AC input, this converter operates within a temperature range of -10°C to 70°C. It meets safety standards including UL60950-1 and EN62368-1, and carries CE, CSA, cURus, TUV, and UL approval agency certifications. The dimensions are 132.1mm x 50.0mm x 26.4mm, and it is designed for chassis mounting.
The LFA series includes built-in inrush current, overcurrent, and overvoltage protection circuits. It also complies with IEC61000-3-2 for harmonic attenuation and offers power factor correction. This model is manufactured using SMD technology, requiring careful handling to avoid PCB stress.
85-264 VAC.
24 VDC.
10 A.
240 W.
87.5% at 200 VAC input.
-10°C to 70°C.
Open frame, chassis mount.
