| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

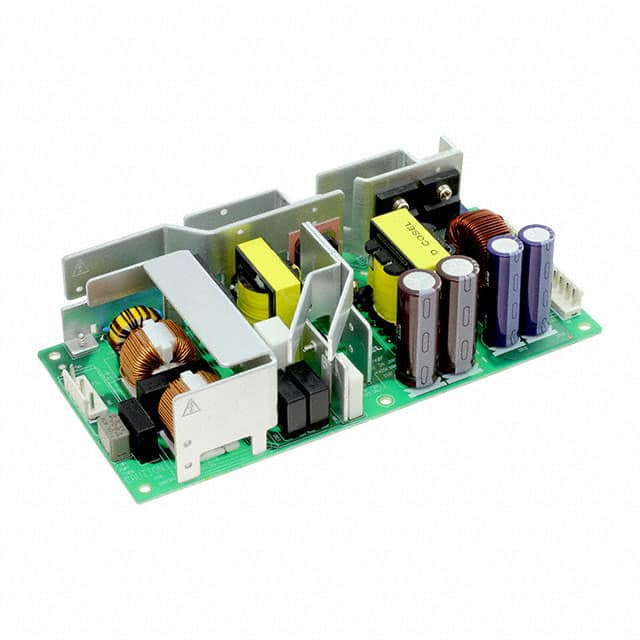

The Cosel LFA240F-24-TY is an open frame AC DC converter designed for ITE (Commercial) applications. It provides a stable 24V output with a maximum current of 10A, resulting in a total power output of 240W. This unit boasts a high efficiency of 87.5% at ACIN 200V.
Featuring a compact design with dimensions of 132.1mm x 50.0mm x 26.4mm, it is suitable for chassis mounting. The converter operates within a temperature range of -10°C to 70°C and meets safety standards including 60950-1 and 62368-1, with approvals from CE, CSA, cURus, TUV, and UL. It is also compliant with RoHS3, REACH Unaffected, and has an MSL of 1 Unlimited.
This AC DC converter is a reliable power solution for various electronic equipment requiring a specific DC voltage input. Its open frame construction allows for efficient heat dissipation when properly integrated into an end product.
The Cosel LFA240F-24-TY has a 24V output voltage and a maximum output current of 10A.
The LFA240F-24-TY AC DC converter has a power rating of 240W.
The efficiency of the Cosel LFA240F-24-TY is 87.5% at ACIN 200V.
The dimensions of the LFA240F-24-TY are 132.1mm in length, 50.0mm in width, and 26.4mm in height.
The operating temperature range for the LFA240F-24-TY is -10°C to 70°C.
The Cosel LFA240F-24-TY complies with safety standards 60950-1 and 62368-1.
