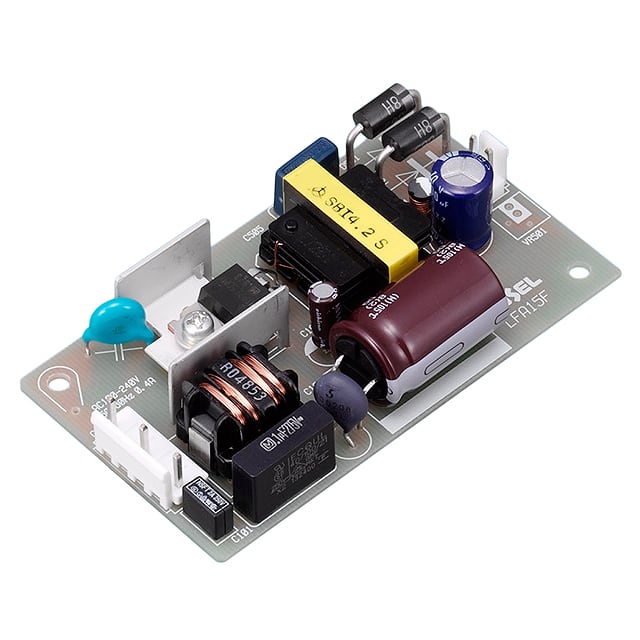

The Cosel LFA15F-12 is an open frame AC DC power supply designed for various applications. It offers a 12VDC output with a maximum power of 15W and a current rating of 1.3A. The unit accepts a universal input voltage range of 85 to 264 VAC, making it suitable for global use.
Key features include built-in inrush current limiting, overcurrent protection (OCP), and overvoltage protection (OVP). It also incorporates a harmonic attenuator compliant with IEC61000-3-2 and provides power factor correction. The operating temperature range is -10°C to 70°C with derating.
This AC DC converter is built using SMD technology and is suitable for chassis mounting. It complies with safety standards such as UL60950-1 and EN62368-1, and meets EMI standards including FCC-B and CISPR22-B. The LFA15F-12 is RoHS3 compliant and has an MSL rating of 1.
85 to 264 VAC.
12V at 1.3A.
-10°C to 70°C with derating.
Chassis mount open frame.
Yes, built-in overcurrent protection.
78.5% typical.
IEC 60950-1 and IEC 62368-1.
