LFA150F-5-SNCJ1Y
Cosel

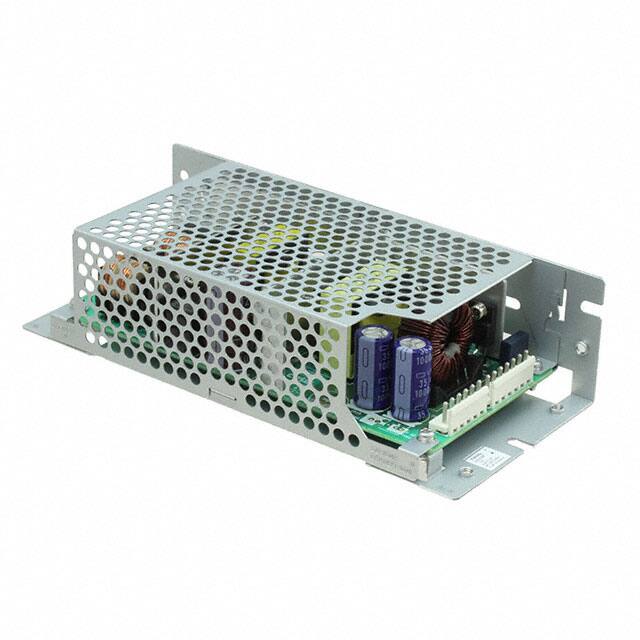

The Cosel LFA150F-5-SNCJ1Y is an enclosed AC/DC converter featuring a 5V output and 30A current capacity. It operates with a universal input voltage range of 85-264 VAC.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |
The Cosel LFA150F-5-SNY is a versatile AC/DC power supply designed for ITE (Commercial) applications. This enclosed unit provides a stable 5V DC output with a maximum current of 30A, delivering up to 150W of power. It features a wide universal input voltage range of 85-264V AC, making it suitable for global use.
Key electrical specifications include high efficiency up to 83.0% at 200V AC input, built-in inrush current limiting, overcurrent protection (OCP), and overvoltage protection (OVP). The operating temperature range is -10°C to 70°C. The converter complies with safety standards such as UL60950-1 and EN62368-1.
Designed for easy integration, the LFA150F-5-SNY is chassis mountable and has dimensions of 160.0mm x 74.9mm x 37.1mm. It also includes features like harmonic attenuation compliant with IEC61000-3-2 and built-in standby power reduction circuits.
85-264 VAC.
5 VDC.
30 A.
-10°C to 70°C.
Chassis mount, enclosed package.
Overcurrent protection, overvoltage protection, inrush current limiting.
83.0% at ACIN 200V, 79.5% at ACIN 100V.
