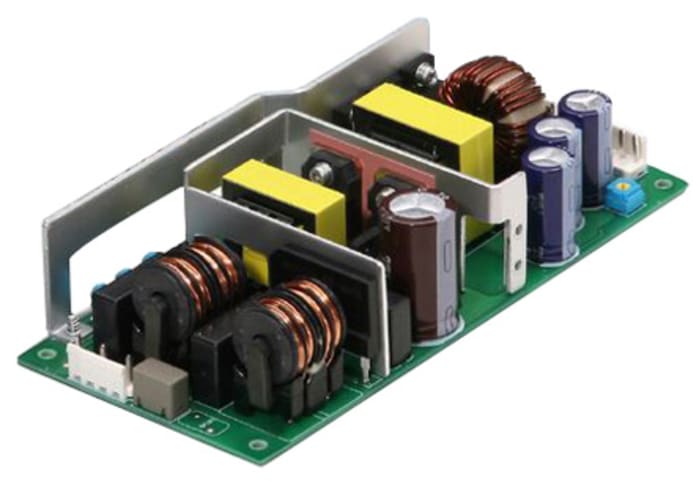

The Cosel LFA150F-48-Y is an open frame AC/DC power supply designed for ITE (Commercial) applications. It offers a stable 48VDC output with a maximum current of 3.2A, providing a total power of 153.6W. The unit accepts a universal input voltage range of 85-264 VAC and boasts an efficiency of 88%.
Key electrical features include built-in inrush current limiting, overcurrent protection (OCP), and overvoltage protection (OVP). The power supply also complies with harmonic attenuation standards (IEC61000-3-2).
With a compact chassis mount design, the LFA150F-48-Y measures 160.0mm in length, 74.9mm in width, and 37.1mm in height. It operates within a temperature range of -10°C to 70°C and has a weight of 390g. Safety agency approvals include CE, CSA, cURus, TUV, and UL, with standard compliance to 60950-1 and 62368-1.
This series is manufactured using SMD technology, and care should be taken to avoid stress on the PCB, such as twisting or bending, which may cause defects.
The Cosel LFA150F-48-Y provides a 48VDC output.
The maximum output current for this model is 3.2A.
The power rating of the LFA150F-48-Y is 153.6W.
The LFA150F-48-Y accepts a universal input voltage range of 85-264 VAC.
The operating temperature range is -10°C to 70°C.
Yes, the LFA150F-48-Y has built-in overcurrent protection.
The dimensions are 160.0mm x 74.9mm x 37.1mm.
