LFA150F-48-SNJ1R
Cosel

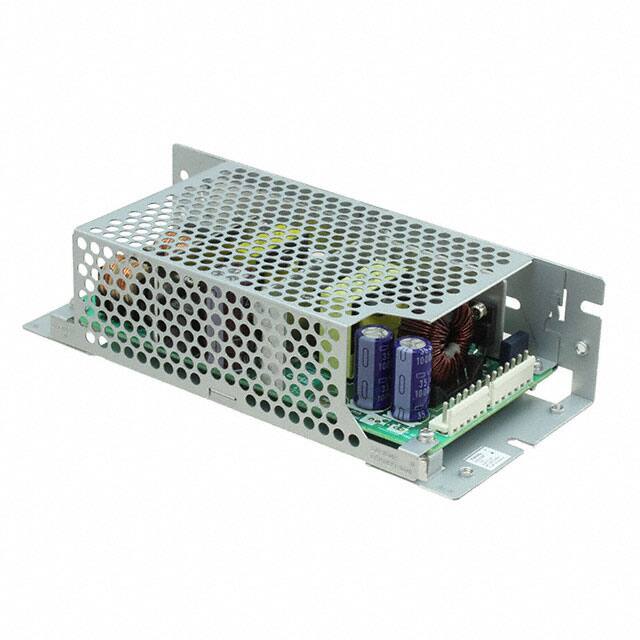

The Cosel LFA150F-48-SNJ1R is an enclosed AC-DC converter providing a 48VDC output at 3.2A. It features universal input and chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |
The Cosel LFA150F-48-SN is a versatile AC-DC power supply designed for various applications. This enclosed unit offers a stable 48V DC output with a maximum current of 3.2A, providing up to 150W of power. It boasts a high efficiency rating of 88% and operates within a wide input voltage range of AC85-264V.
Designed for robust performance, the LFA150F-48-SN features a chassis mount type, making it suitable for integration into industrial and commercial equipment. Its operating temperature range is from -10°C to 70°C, ensuring reliability in diverse environmental conditions. The unit is approved by major safety agencies including CE, CSA, cURus, TUV, and UL, and complies with standard numbers 60950-1 and 62368-1.
Key specifications include a single output, an isolation voltage of 3kV, and dimensions of 160.0mm x 74.9mm x 37.1mm. The LFA150F-48-SN is suitable for ITE (Commercial) applications and offers a reliable power solution for demanding designs.
The Cosel LFA150F-48-SN has an output voltage of 48 VDC.
The maximum output current for the LFA150F-48-SN is 3.2 A.
The efficiency of the Cosel LFA150F-48-SN is 88%.
The operating temperature range for the LFA150F-48-SN is -10°C to 70°C.
The LFA150F-48-SN uses chassis mount.
The dimensions of the Cosel LFA150F-48-SN are 160.0mm (Length) x 74.9mm (Width) x 37.1mm (Height).
