LFA150F-3R3-CRY
Cosel

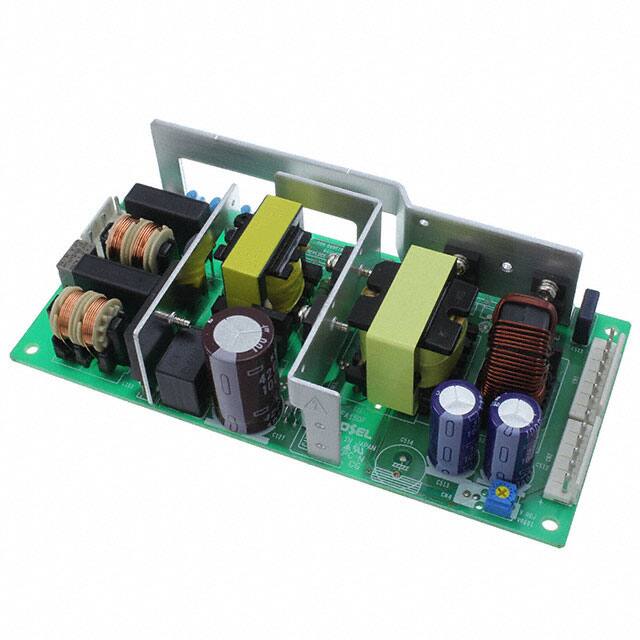

The Cosel LFA150F-3R3-CRY is an open frame AC/DC converter with a 3.3V output and a maximum current of 30A. It features universal input voltage and 82% efficiency.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Standard Number | |
| Type | |
| Voltage |
The Cosel LFA150F-3R3-Y is a versatile AC-DC power supply designed for various applications. It features an open-frame construction suitable for chassis mounting, providing a stable 3.3V DC output with a maximum current of 30A, totaling 150W.
This power supply operates with a universal input voltage range of AC 85-264V, making it suitable for global use. It boasts an efficiency of 82% and includes built-in protection circuits for inrush current, overcurrent, and overvoltage. The unit also incorporates harmonic attenuation compliant with IEC61000-3-2 and features a standby power reduction circuit.
Designed for ITE (Commercial) applications, the LFA150F-3R3-Y operates within a temperature range of -10°C to 70°C. Safety agency approvals include CE, CSA, cURus, TUV, and UL, with standard numbers 60950-1 and 62368-1. Its dimensions are 160.0mm x 74.9mm x 37.1mm.
The output voltage is 3.3VDC and the output current is 30A.
The input voltage range is 85-264VAC at 50/60Hz.
The operating temperature range is -10°C to 70°C.
It includes overcurrent protection, overvoltage protection, and inrush current limiting.
The efficiency is 82%.
The isolation voltage is 3kV.
The dimensions are 160.0mm x 74.9mm x 37.1mm (6.30" x 2.95" x 1.46").
