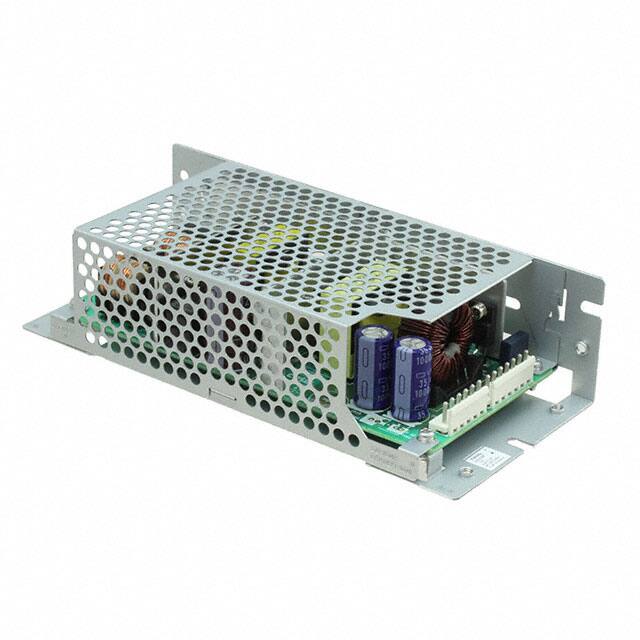

The Cosel LFA150F-3R3-SNY is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a single output of 3.3V at up to 30A, with a maximum output wattage of 150W.
This unit features a universal input voltage range of 85-264 VAC and a typical efficiency of 83.0% at 200V input. It includes built-in protection circuits for inrush current, overcurrent, and overvoltage. The power supply complies with IEC61000-3-2 harmonic standards and has an integrated harmonic attenuator.
Designed for chassis mounting, the LFA150F-3R3-SNY has dimensions of 160.0mm x 74.9mm x 37.1mm. It operates within a temperature range of -10°C to 70°C and carries safety agency approvals including CE, CSA, cURus, TUV, and UL, adhering to standards like 60950-1 and 62368-1.
The output voltage is 3.3 VDC.
The maximum output current is 30 A.
The input voltage range is 85-264 VAC.
The operating temperature range is -10°C to 70°C.
It uses chassis mount.
Yes, it has built-in overcurrent protection.
It complies with 60950-1 and 62368-1 standards.
