| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

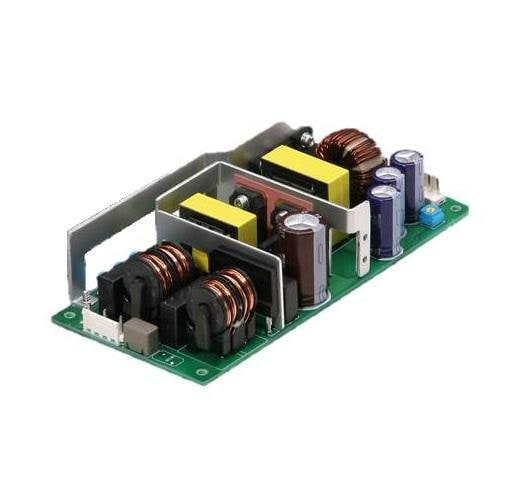

The Cosel LFA150F-3R3-CJ1R2Y is a versatile AC/DC power supply designed for industrial applications. This open-frame unit operates with a universal input voltage range of 85 to 264 VAC, making it suitable for global use.
Key electrical specifications include a 3.3VDC output voltage capable of delivering up to 30A, resulting in a maximum output power of 99W. The power supply boasts an efficiency of 82% and provides an isolation voltage of 3 kVAC. It is designed for chassis mounting.
With an operating temperature range of -10°C to 70°C, this converter is built to withstand demanding environments. Its compact dimensions of 160.02mm x 73.66mm x 38.1mm allow for integration into various systems. The unit complies with safety standards such as 60950-1 and 62368-1.
85 VAC to 264 VAC.
3.3 VDC.
30 A.
99 W (convection).
-10°C to 70°C.
Open frame chassis mount.
60950-1 and 62368-1.
